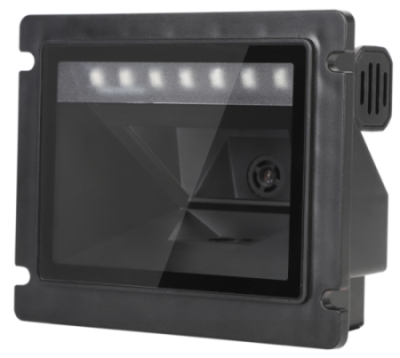

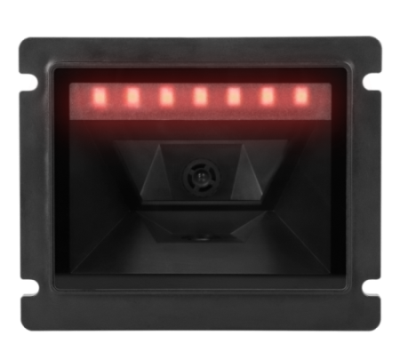

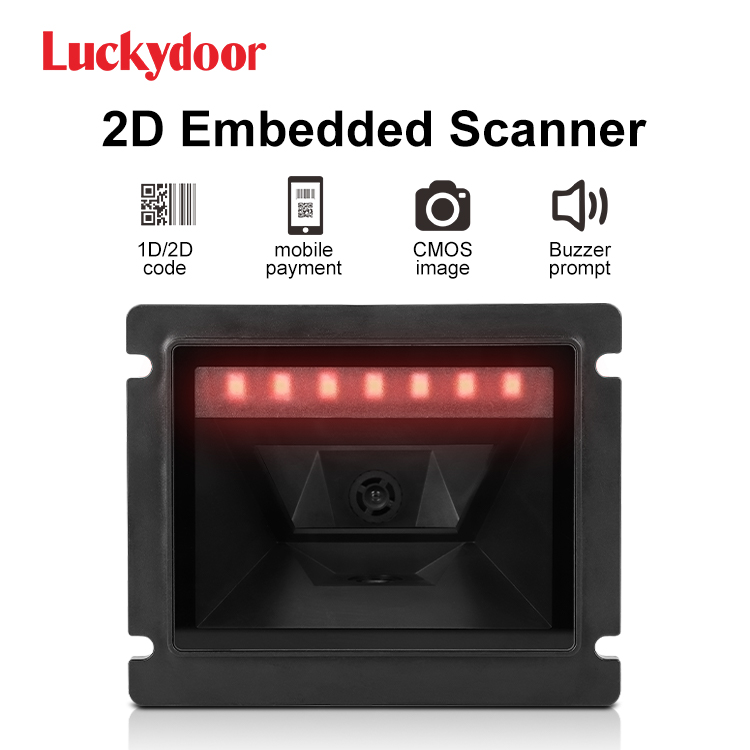

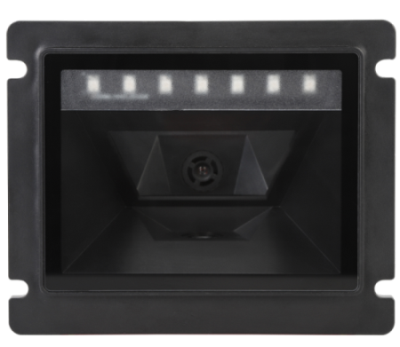

KS600H Embedded 2D Qr code Fixed Mount Barcode Scanner For Kiosk Machine

KS600H Embedded 2D Qr code Fixed Mount Barcode Scanner For Kiosk Machine

1D 2D QR Bar code Scanner Module Engine, 2d barcode scanner Embedded Scan Engine barcode reader for Kiosk

5mil Embedded Barcode Scanner Engine, 617nm Embedded Barcode Scanner Engine, white 1d barcode scanner module

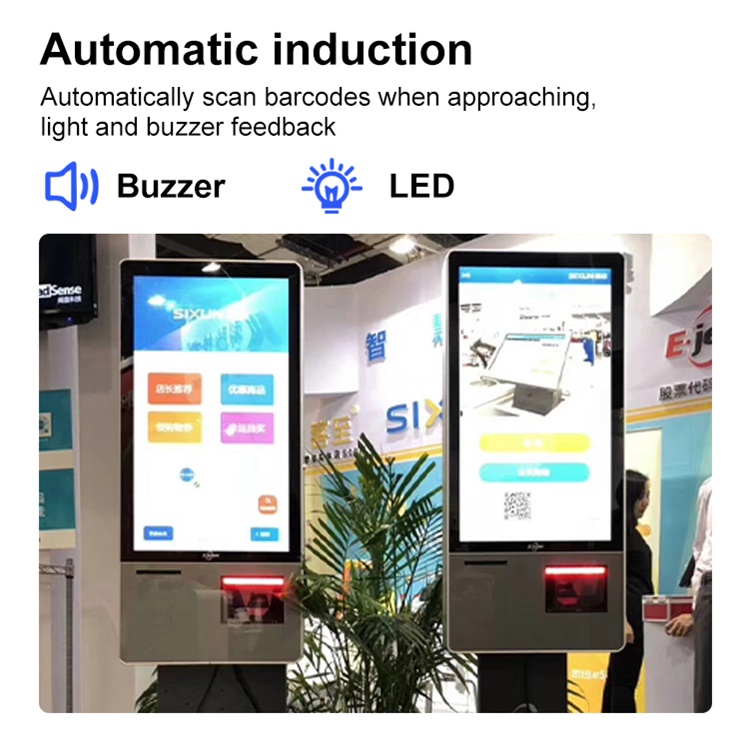

With the development of payment technology, more and more people prefer to pay without cash. Carrying a mobile phone can solve all payment problems. This also requires the cashier to add barcode scanning devices that can read mobile payment barcodes, or The cash register is equipped with an embedded scanning module to complete the payment. The market demand for this type of equipment has greatly increased. We have specially developed this embedded scanning module for the cash register device to realize the payment function. The module can realize fast and accurate payment and enhance the customer's shopping experience.

Item No :
KS600H
Order(MOQ) :
1PC
Payment :
T/T, Western Union, MoneyGram, L/C
Product Origin :
Made in China
Color :
black
Shipping Port :
Shenzhen port or Guangzhou port
Lead Time :
1-3 working days
Weight :
1000g

Inquire Now

Product categories

New products

Product Details

Light Source	SXGA-W(Width1280*high1024) Ratio(5:4)

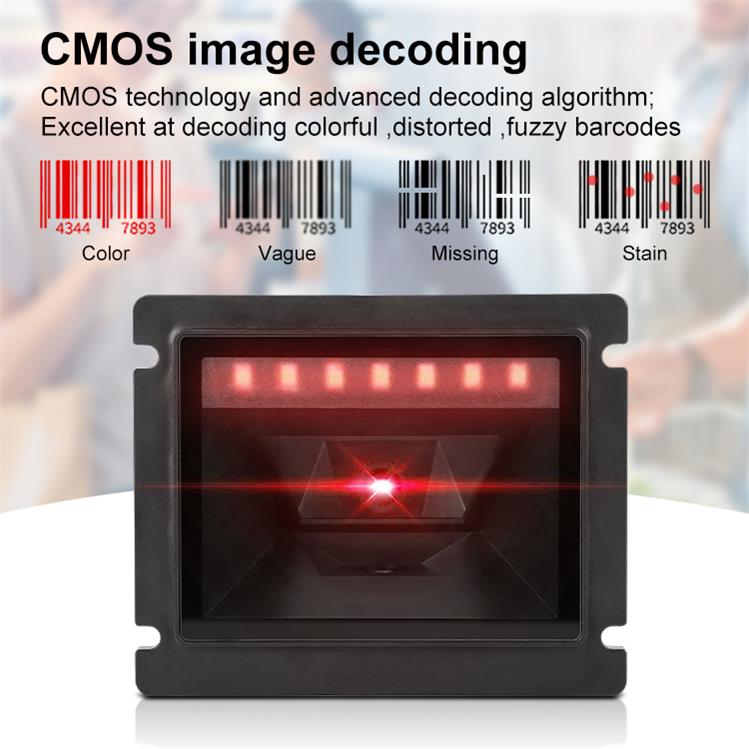

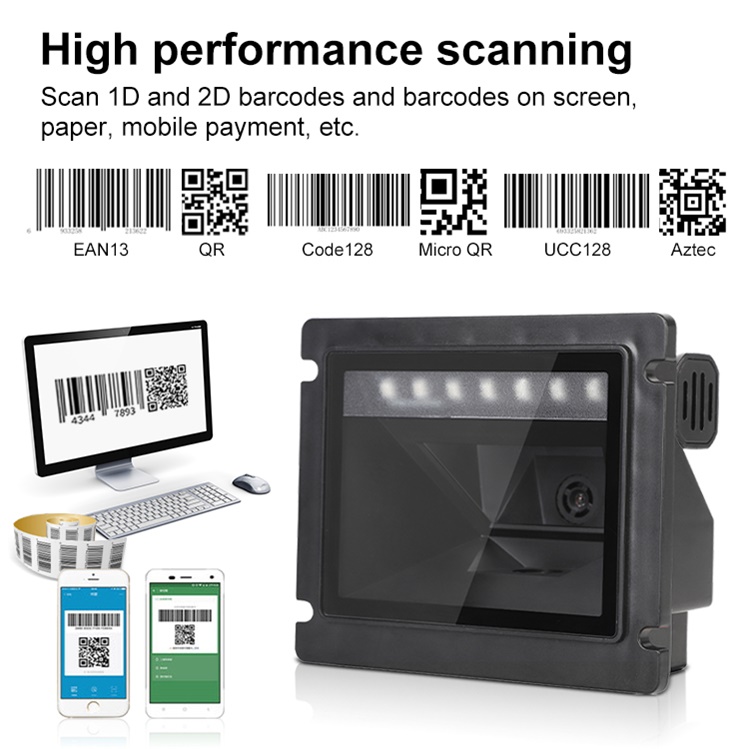

Decode Capability	1D: EAN-8, EAN-13, EAN-132add-on, EAN-135add-on, ISSN, ISBN, UPC-A, UPC-E, Code11, Code32,Code39, Code93, Code128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, ISBT-128, GS1-128, GS1DataBar(RSS14), GS1DataBarLimited, GS1DataBarExpanded.
	2D: PDF417, MicioPDF417, QR Code, MicroQR, DataMatrix, QR, Aztec.
Depth of field	10mm~250mm
System compatibility	Linux, Android, Windows XP/7/8/10/MAC
Resolution	Code 39 4mil
Motion Tolerance	3.8meters/second
Scan Mode	Continuous Scanning
Print contrast	20%
Scan Angle	Turn angle ±360°, Elevation angle ±60°, Declination angle ±70°
Mutual Move	Led: Blue light: blue light flashes the code reading prompt, blue light power indicator
	Beeper: Startup prompts, reading tips
	Key: switch three tones; 1D code switch

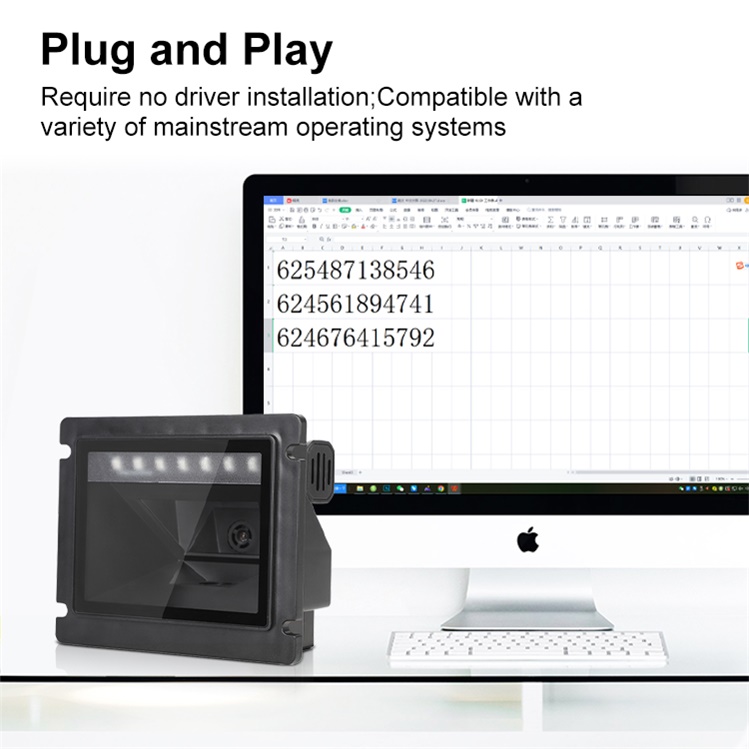

Interface	USB(Drive-Free), RS232, USB-COM
Dimension	115mm94mm48mm
Material	ABS+PC
Cable	1.8M
Operating Temperature	-20℃~55℃
Storage Temperature	-20℃~60℃
Relative Humidity	5%~95%RH (Non-condensing)

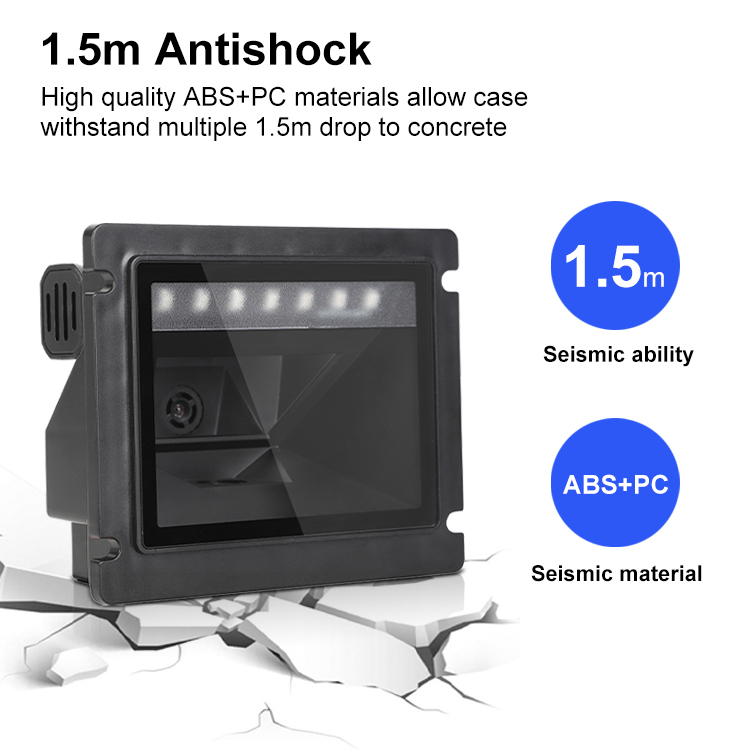

Drop Resistance	Withstands multiple time 1.5 meters drops to concrete
Ambient Ligh	0-70000LUX
Voltage	DC 5V±5%
Operating Current	Standby current 130mA;
Operating Current	Working current 160mA.
