Home Wireless Barcode Scanner

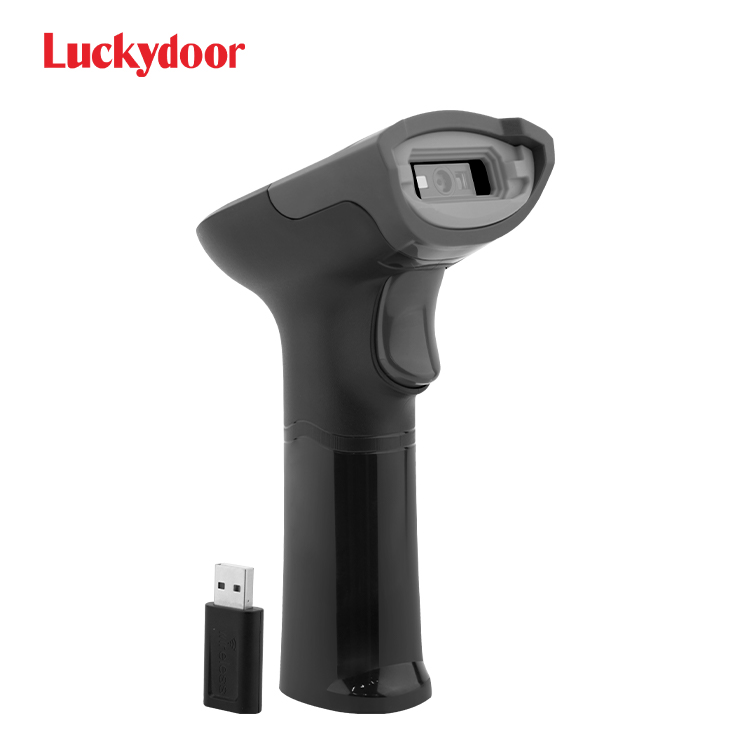

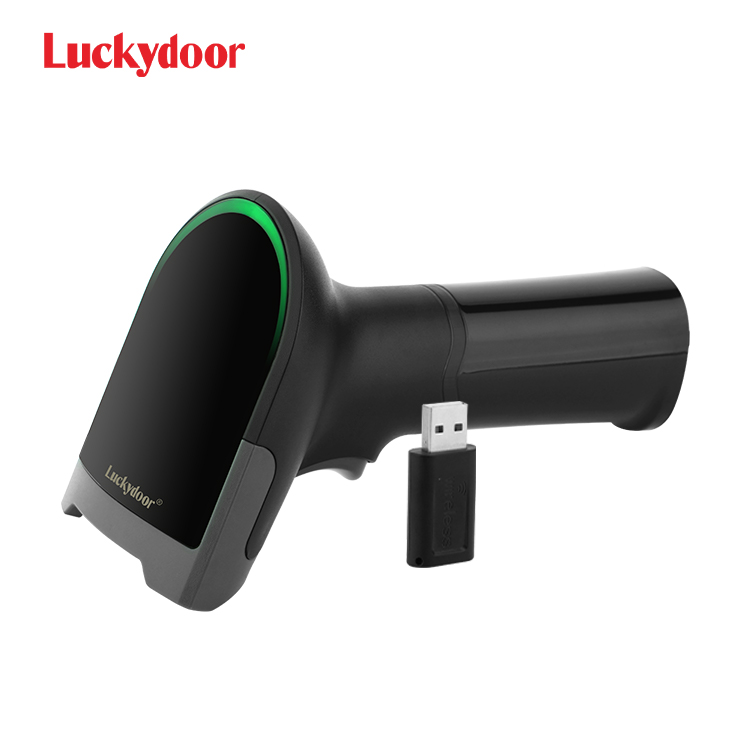

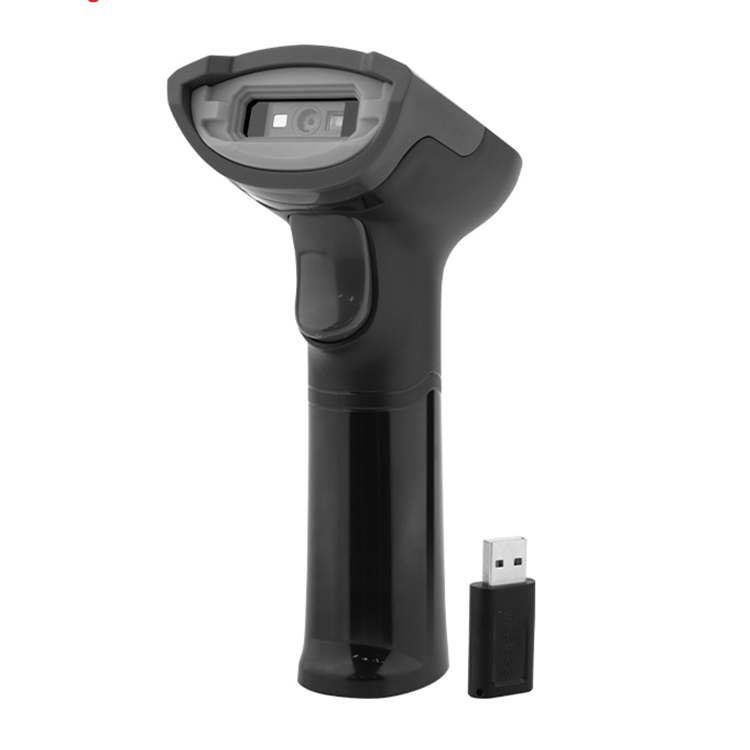

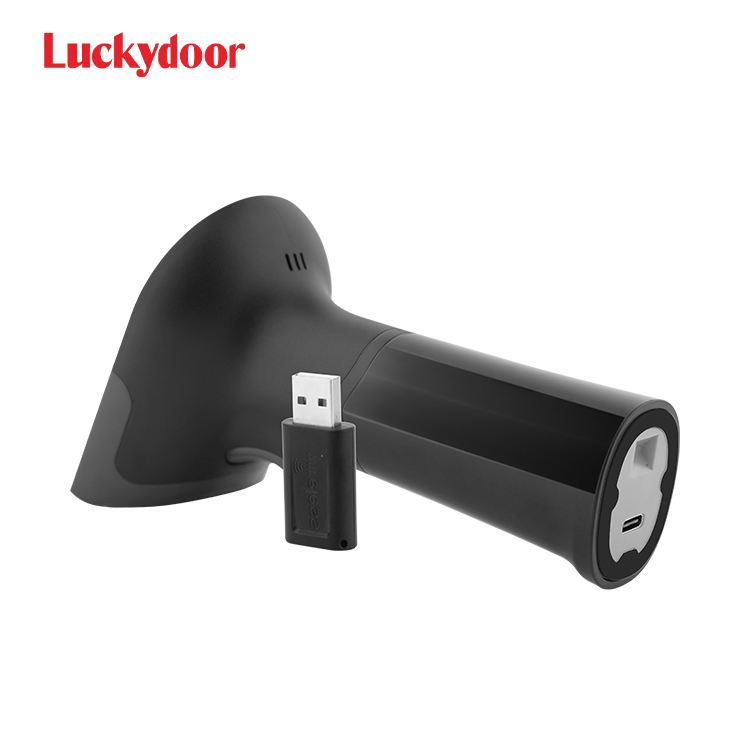

l500RB 2D handheld wireless bluetooth and 2.4G QR code scanner barcode scanner

l500RB 2D handheld wireless bluetooth and 2.4G QR code scanner barcode scanner

2D Bluetooth barcode scanner more like wired scanner, except that they can connect to smart phone, tablet directly through bluetooth, and can use in a large area, like warehouse ,this scanner with automatic store function, if the scanner out of the range , it will save the barcodes it read in the memory chip,after back to range, it will upload the data saved by press the trigger, it is very easy to use this blue tooth 2d barcode scanner, and we are one reliable barcode scanner manufacturer from China.



  • Item No :

    L500RB
  • Order(MOQ) :

    1PCS
  • Payment :

    T/T, Western Union, MoneyGram, L/C
  • Product Origin :

    Made in China
  • Color :

    black
  • Shipping Port :

    Shenzhen port or Guangzhou port
  • Lead Time :

    1-3 working days
  • Weight :

    226.7g

The L500RB is a versatile sample tracking instrument that decodes 2D and linear barcodes and QR codes. The wireless reader utilizes Blue tooth & 2.4Ghz wireless technology to allow mobility in the lab, cold room or in the field to yield efficient sample identification and tracking, and for direct input into a paired workstation, POS or portable device. this wireless barcode reader is capable of reading both 1D and 2D barcodes from paper and LED display.



Product Feature:

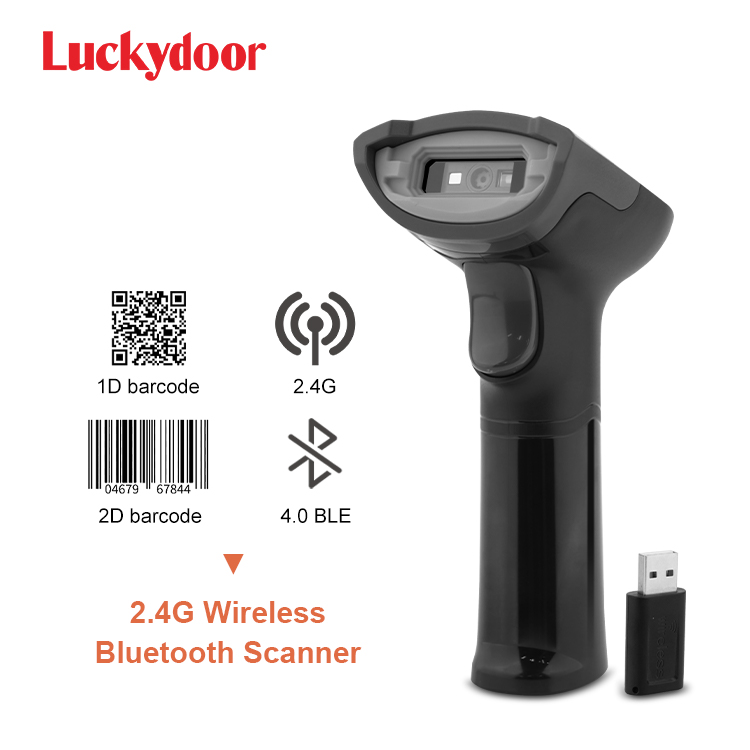

• 3 in 1 compatible with 2.4Ghz & Blue tooth & Wired

• Can use as wired and wireless barcode scanner

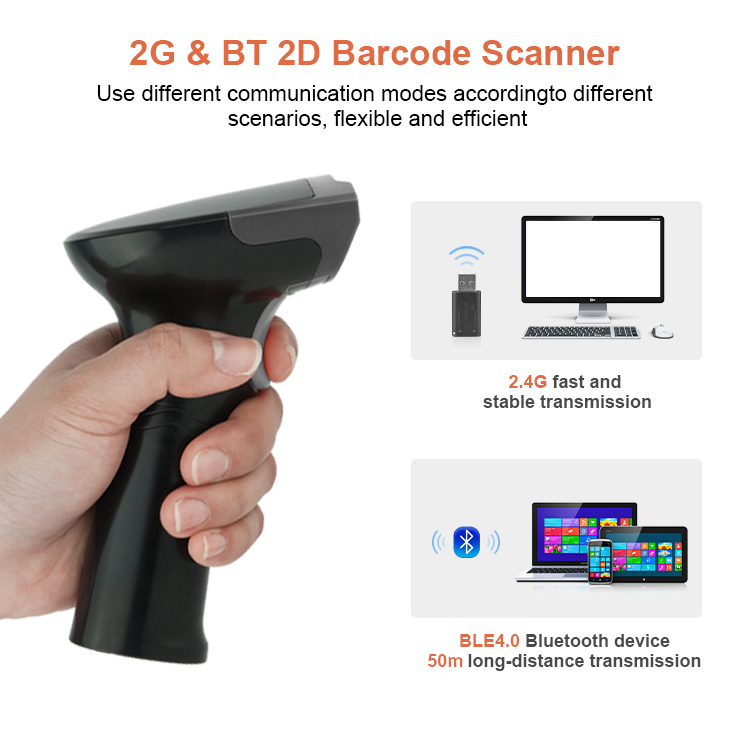

• 2 kinds of wireless solution :2.4Ghz and Blue tooth

• 4M memory allow max 35000 barcodes store (EAN13)

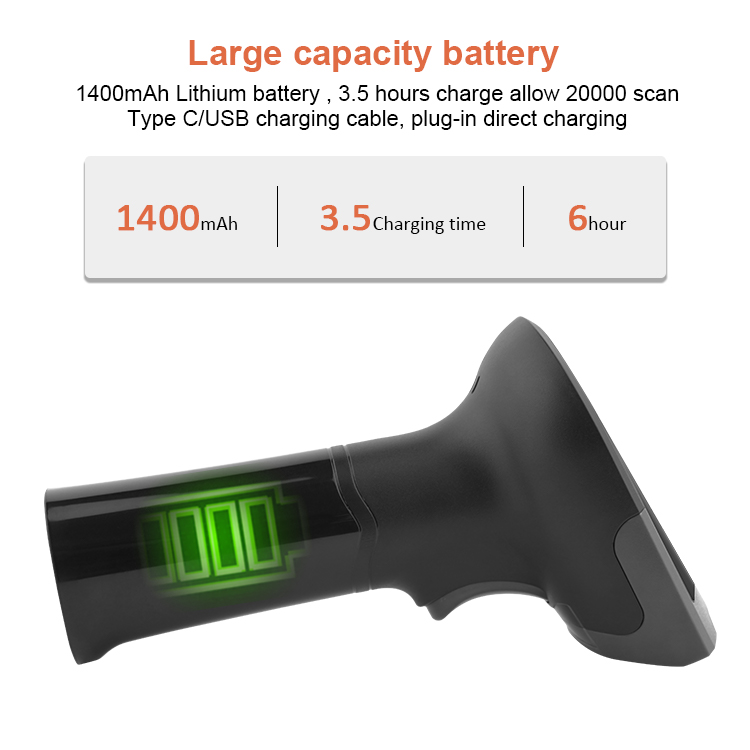

• Large battery support nearly 20000 scan per charge

• Compatible with Android,IOS mobile devices



Product Specifications
Performance Parameters
Light Sources
617nm LED Aimer,White LED
Supported Symbologies
1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1
Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5.
2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micor QR, Micor PDF417, Hanxin Code.
Resolution
640*480
Scan Method
Manual/Contnuous/Automatic inductive scanning
Scan Angle
Yaw 55°,Rotation 360°,Pitch 55°
Precision
≥5mil
Contrast
20%
Depth of scan field
EAN13 50-200mm(13mil);
QR 25-240mm(20mil);
PDF417 30-130mm(6.67mil)
Error Rate
Less than 1/5million
Interface
USB-HID
Wireless Communication
Pairing dedicated receiver: 2.4G communication
Pairing Mobile Blue tooth Devices: Blue tooth BLE 4.0
Transmission Distance
30-50M (Open yard)
Storage Mode
Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored. Storage capacity is 512000
characters.
Inventory storage mode: Scanner can enter inventory mode,
storage capacity is 512000 characters.
Pairing Mode
One to One: One Scanning Gun Pairs One Receiver,
One scanner paired with a Blue tooth mobile device.
Physical Parameters
Dimensions
79.7mm*69mm*155mm
Weight
223.9g
Material
ABS+PC
Cable Length
1.2M
Environmental Parameters
Operating Temperature
-20℃ ~50℃
Storage Temperature
-40℃~70℃
Relative Humidity
5%~95% RH(Non-condensing)
Ambient lighting
0~100000LUX
Drop/Shock Resistance
Withstands multiple times 3 meters drops to concrete
lectrical Parameters
Voltage
DC5V±5%
Operating Current
when not scanning code ≥26mA; when scanning code ≥280mA
Standby Current
0mA(Standby is to cut off battery power)
Charging Mode
Contact the charging
Battery Working Time
6h
Charging Time
3.5h
Lithium battery
1400mA
Charging Model
Square USB charging cable, plug straight charge





FAQ of L500RB 2D wireless barcode scanner:



Q1:  Can a barcode scanner read all barcodes?

Not all barcode scanners can read all barcodes. Laser barcode scanners and linear imagers read only 1D barcode scanners. Imager (camera-based) 2D barcode scanners read all common 1D and 2D barcodes.

Q2: How long can I use this bluetooth 2d scanner to work?

Barcodes are applied to products as a means of quick identification. They are used in retail stores as part of the purchase process, in warehouses to track inventory, and on invoices to assist in accounting, among many other uses.

Q3: Can barcodes run out?

No, even out of the range, the data will be saved in the scanner automatically, just need the press the button to upload the stored data when you back in the range.
