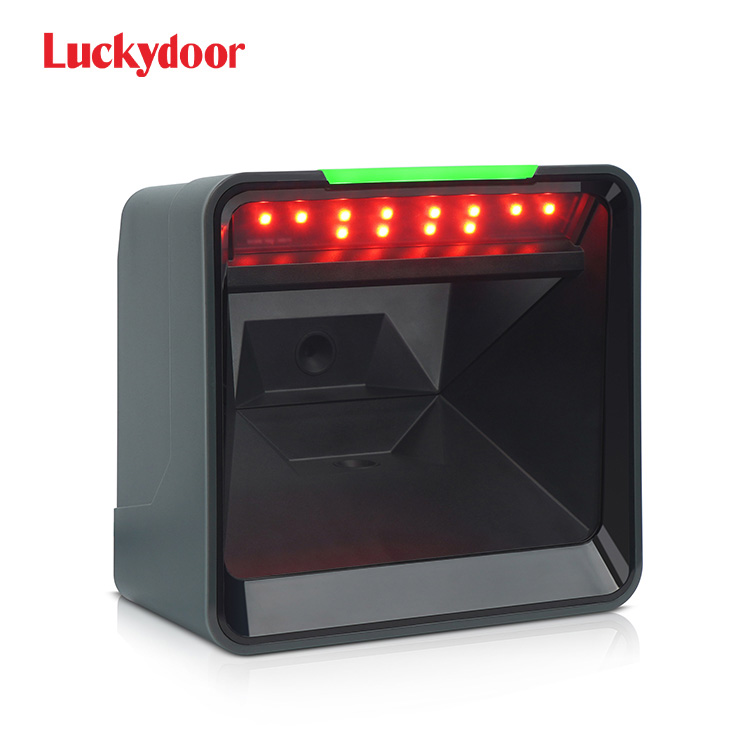

2D Omnidirectional Desktop code bar reader pdf wired USB RS232 Barcode Scanner

2D Omnidirectional Desktop code bar reader pdf wired USB RS232 Barcode Scanner

DP980 2D desktop barcode scanner specailly design with a big scan window, compared with other small desktop scanners on the market, our platform barcode scanner has wider scanning range, easily to realize quicky scan, greatly improved work efficiency. With plug and play design, this platform barcode scanner requires 0 setup, just plug it and it'll work immediately, no need to install any driver, software or app. Compatible with Windows, MacOS and Linux, etc multiple systems.

  • Item No :

    DP980
  • Order(MOQ) :

    1pc
  • Payment :

    T/T, Western Union, MoneyGram
  • Product Origin :

    Made in China
  • Color :

    black and blue
  • Shipping Port :

    Guangzhou or Shenzhen port
  • Lead Time :

    3-7 days
  • Weight :

    540g

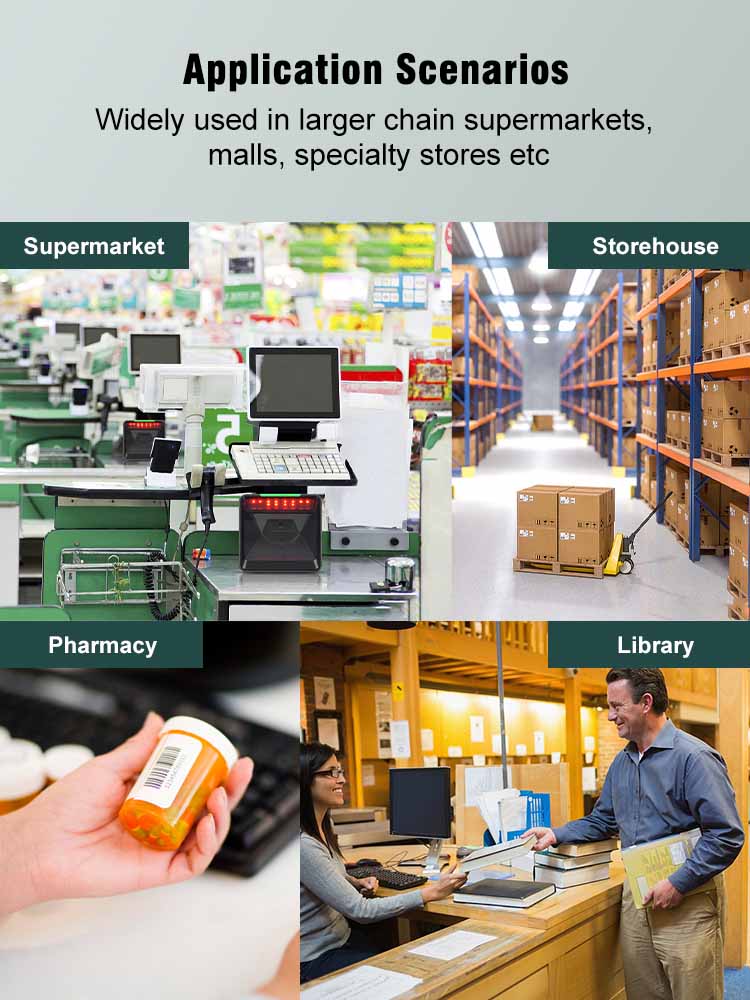

DP980 can easily read paper, goods, screens and other media 1D 2D barcodes. Widely used in large supermarkets, restaurant, chain stores, and grocery stores. Adjustable tone, no noise. In real large Windows, the sweep performance is consistent regardless of the corner. Megapixel camera supports 4mil high precision bar code; coated code, fold code, damage code. Equipped with a dedicated adapter, more stable power supply. 2M/S movement tolerance, goods after no pause, reduce the waiting time in line.



Product Feature:

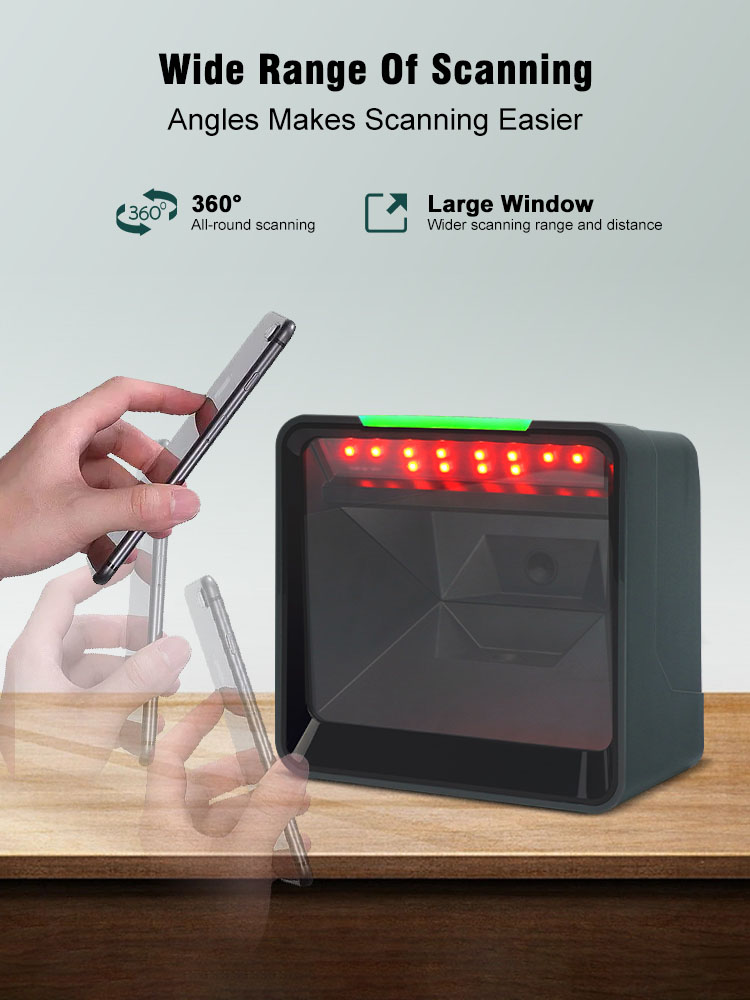

• Big scan window, scanning range is large.

• Plug and play, no need to install any driver, software or app, everyone is easy to use.

• Data can be edited, such as adding prefix and suffix TAB, ENTER, the keyboard case can be set (caps lock)

• High decoding accuracy , able to read high-density QR codes

• Support multi-language keyboard, support special characters

• Software driven – flexible and upgradeable

• Image capture



Product Specifications
Parameter Information
Light Source
LED

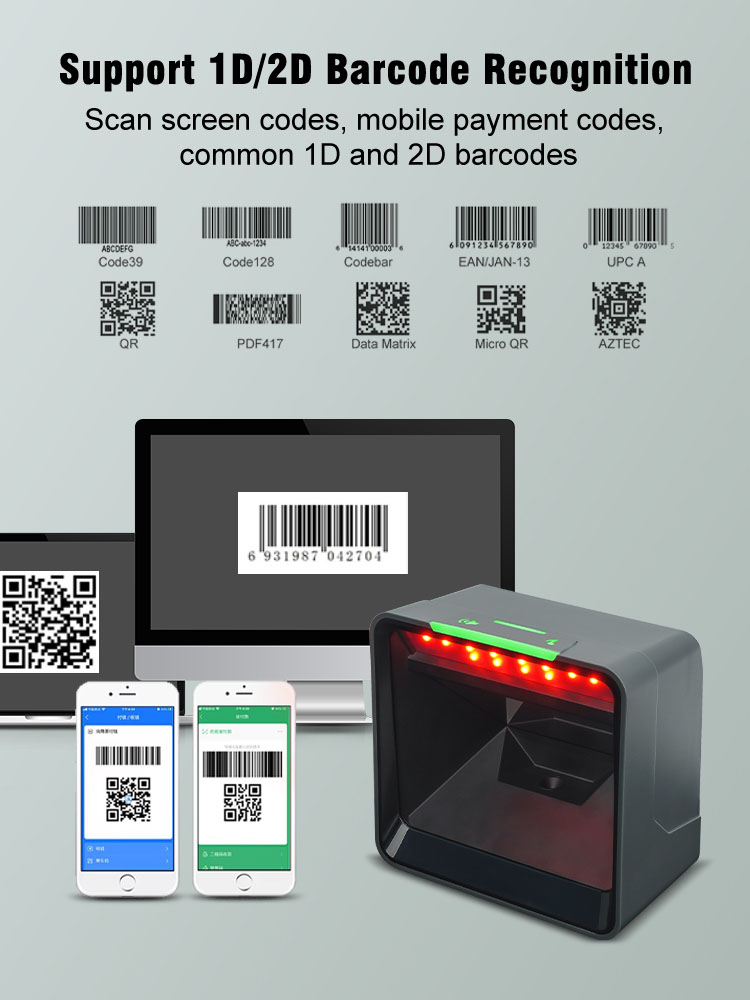

Supported Symbologies
1D: Codabar, Code 11, Code 39, Code 93, Code128/EAN128, EAN,UCC Composite, Interleaved 2 of 5, MSI Code, Planet, Plessey Code, Postnet, RSS,Standard 2 of 5, Telepen, UPC /EAN,etc.
2D: PDF417, QR Code, Matrix 2 of 5, Mrico PDF417, Austraaalian Post, Canada Post, Japan Code, Maxi Code, Codeblock, Aztec, Dutch Post, TLC 39, Data Matrix, etc.
System Compatibility
Linux, Android, Windows XP/7/8/10
Scan Range
Code 39(5 mil)0 mm~120mm, Code39(20mil)0mm~240mm, QR(20mil)0mm~210mm, Alipay Code(QR 3*3cm)40mm~650mm, Wechat Code(QR 2.3*23cm) 20mm~550mm
Print Contrast
20% minimum reflective difference
Minimum recognition accuracy
Code 39 4mil
Motion Tolerance
4 meters/second
Scan Mode
Automatic Induction Scanning
Image(Pixels)
1024 pixels(H)x1280 pixels(V)
Man-machine Interaction
Indicator light: Red and blue dual color indicator light, blue light flashing code reading prompt, blue light power indicator, red light, turn off qr code reading, Buzzer:start prompt, read code prompt; Key:switch three tones;1D code switch
Recognition angle range
Turn+-360º, Elevation+-65º, Declination +-65º
Interface
USB(Drive-Free), RS232, USB-COM
Physical Parameters

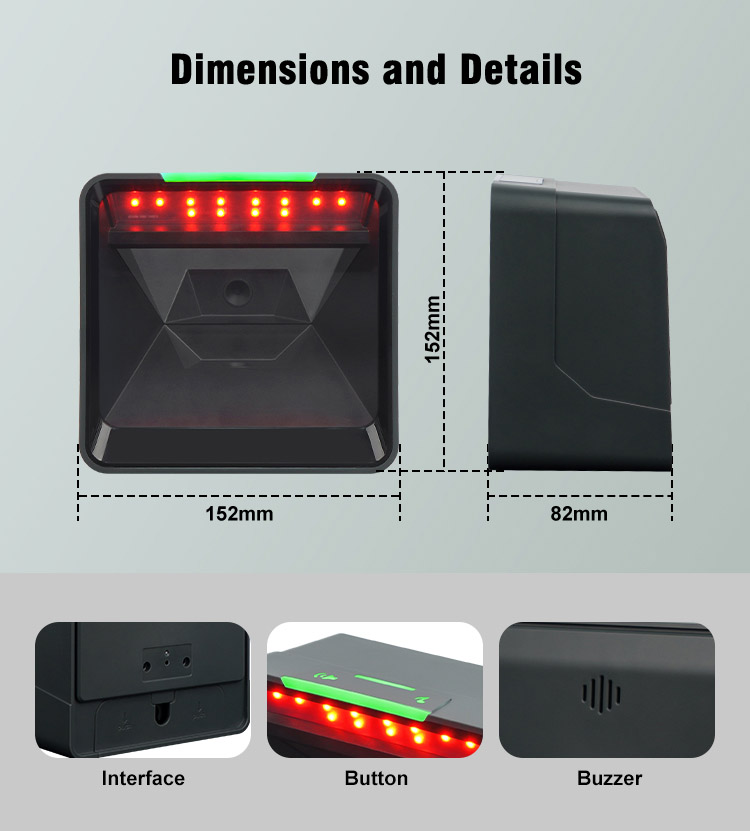

Dimensions
152mm*82mm*152mm(length*width*height)
Material
ABS+PC
Cable Length
1.5m
Environmental Parameters
Operating Temperature
-20ºC~60ºC
Storage Temperature
-30~70ºC
Relative Humidity
5%~95%(non-condensing/non-freezing)
Shock Resistance
Withstands multiple times 1.5 meters drops to concrete
Ambient Light Lmmunity
0-1000000Lux
Electronic Parameters
Working Voltage
DC5V+-5%
Current
Standby current 190mA, Working current 240mA

FAQ of DP980 2d desktop barcode scanner:

Q1: Accept sample order ? What is your mininum order quantiy?

Trial order or sample order is accept, but same cost as bulk.

Q2:  Can your products pass CE/RoHS certificate?

Yes our products meet the industrial standards, like CE/RoHS/CCC.

Q3: Are barcodes and QR codes the same thing?

There are linear, or one-dimensional (1D), barcodes that use parallel lines spaced at varying widths that can be read by barcode scanners.There are also two-dimensional (2D) barcodes, or matrix codes, that use geometric patterns, QR codes for example, that can be read by mobile devices and built-in cameras.
