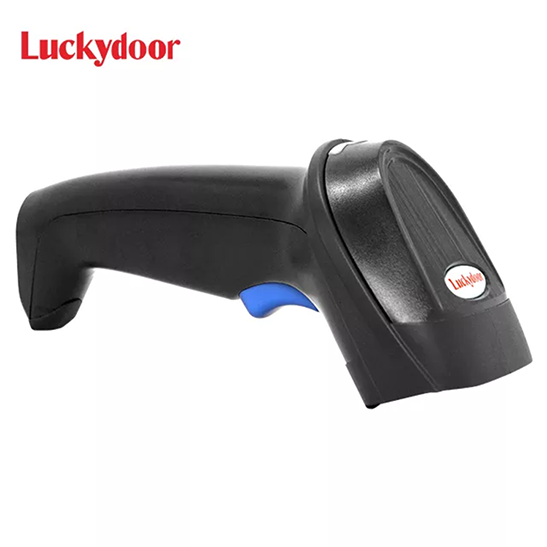

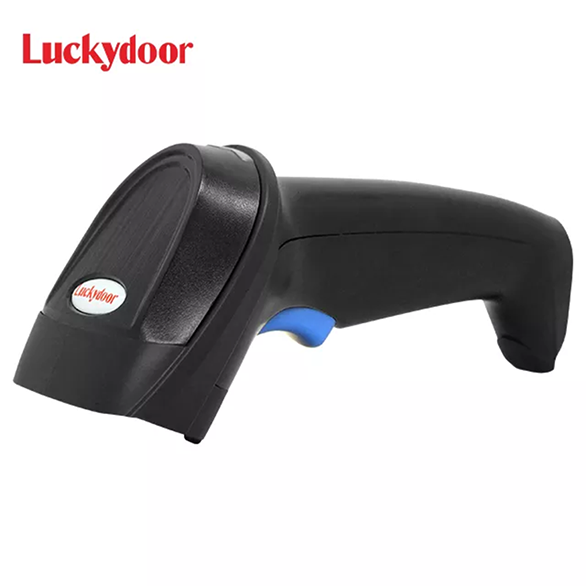

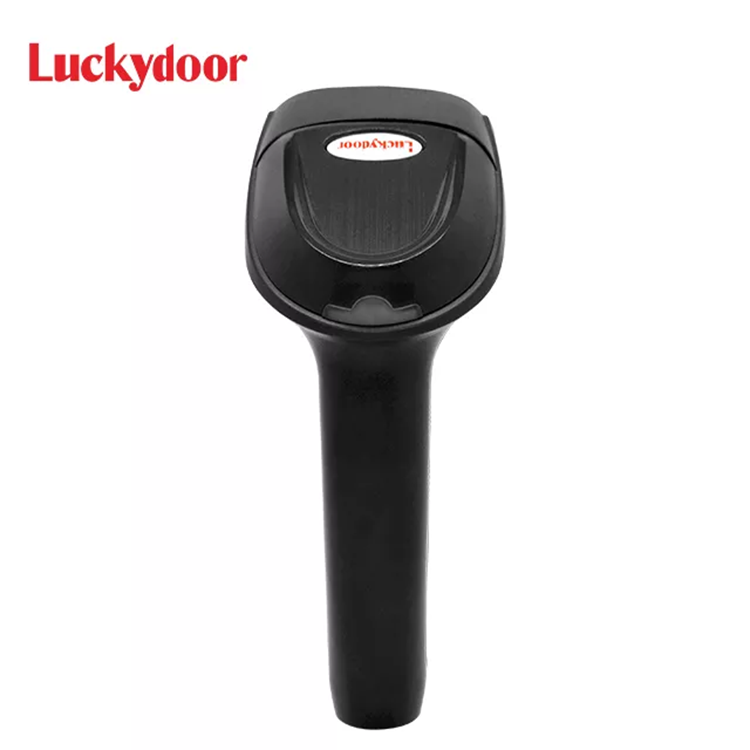

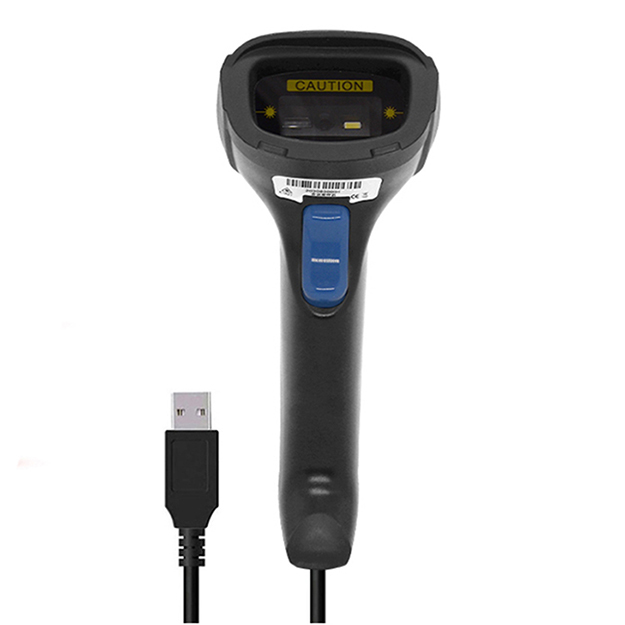

Cost Effective Barcode Scanner 2D USB Wired Handheld QR Code Reader Gun

Cost Effective Barcode Scanner 2D USB Wired Handheld QR Code Reader Gun

K-621 is a basic 2d barcode scanner, it can read both linear 1d and 2d barcodes, easy integrate point of sale systems , the performance to read commodity barcodes is as well as CCD barcode readers ,idea for retail stores like convenience stores, cloths store, shoe stores, book stores etc, it is a really nice product for customers who looking for entry level 2D barcode scanner.

  • Item No :

    K-621
  • Order(MOQ) :

    1pc
  • Payment :

    T/T, Western Union, MoneyGram, L/C
  • Product Origin :

    Made in China
  • Color :

    black and blue
  • Shipping Port :

    Guangzhou port or Shenzhen port
  • Lead Time :

    1-3 working days
  • Weight :

    112g

This K-621 is a basic Ergonomic Design 2d barcode scanner gun. High performance handheld barcode scanner using the custom chip of silicone labs. Humanization design is to upgrade the comfort of operation. This product is durable and had high performance that fully meet different scanning application environment. It widely used for supermarket retails, logistics express, medical industry and factory inventory.



Product Feature:

• Anti-Shock Silicone

• Plug and Play

• Supports Multi Languages

• Scan both Screen and Printed 1D 2D QR Bar Code Symbologies



Product Specifications
Performance Parameters

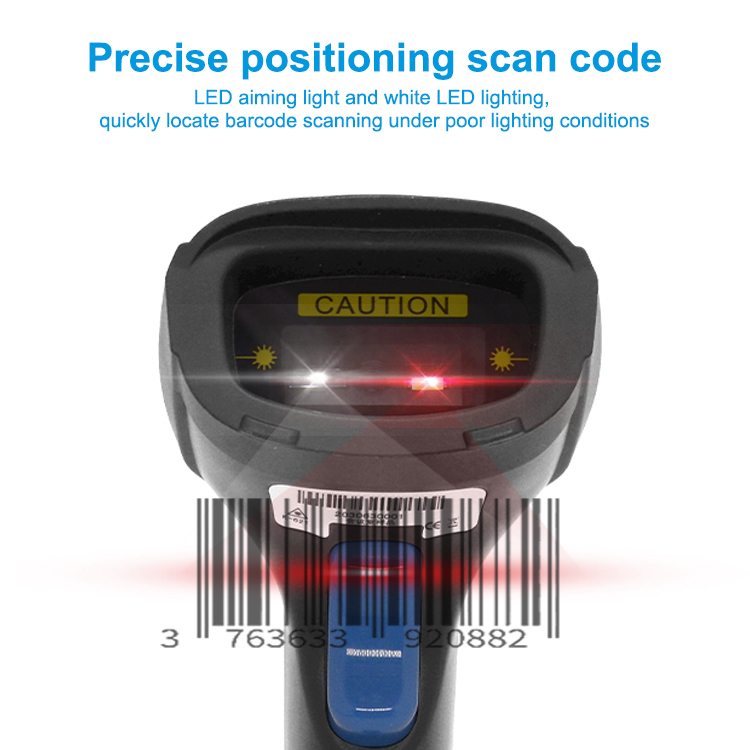

Light Sources
617nm LED Aimer, White LED

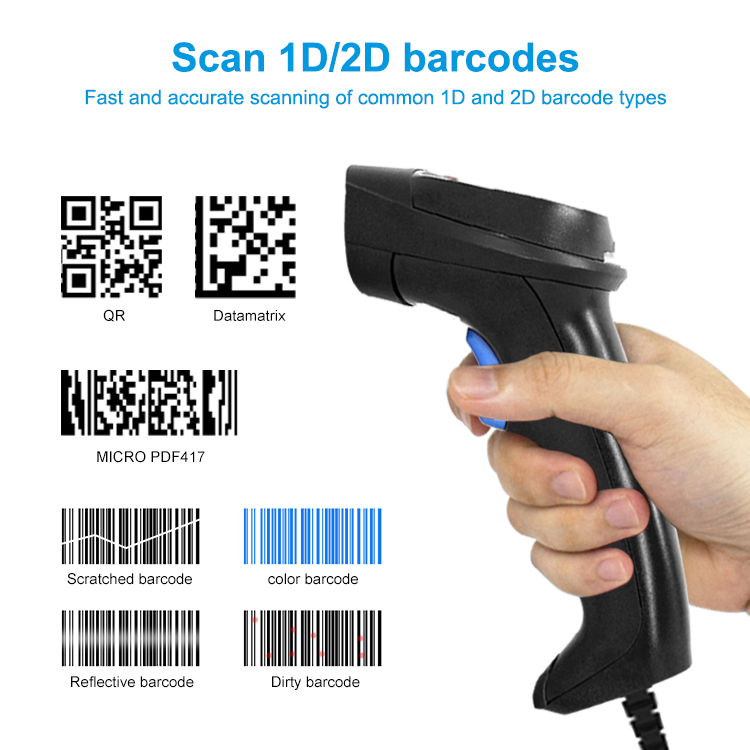

Supported symbologies
1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5,
Code11, MSI Plessey, RSS-14, limited RSS, extended RSS
2D: QR Code, Data Matrix (ECC200), PDF417
Scan Type
Image CMOS
Image sensor
640*480

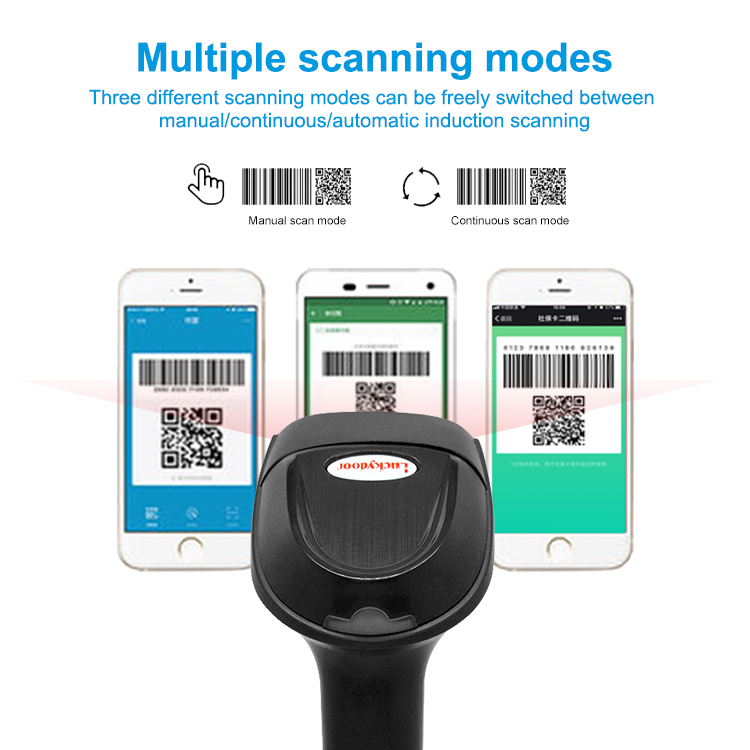

Scan Mode
Manual/Continuous/Automatical Scanning
Scan angle
Yaw±65°, Rotation 360°, Pitch±60°
Precision
1D≥5mil, 2D≥10mil
Depth of scan field
35-190mm (EAN13,13mil, PCS90%)
Error Rate
Less than 1/5million
Interface
USB-HID, RS232, USB-COM
Physical Parameters
Dimensions
83mm*70mm*172mm
Weight
112g
Material
ABS+PC
Cable Length
2m
Environmental Parameters
Operating Temperature
-20℃ ~ 60℃
Storage Temperature
-40℃ ~ 70℃
Humidity
5% to 95% RH (Non-condensing)
Shock Resistance
Wihtstands multiple times 1.5 m drops to concrete
Electrical Parameters
Voltage
DC5V ±5%
Current
120mA (Operating)









FAQ of K-621 handheld wired barcode scanner:

Q1: Can 2D scanners read QR codes?

Yes, QR codes is the most use 2D barcodes, it can read QR codes, Data Matrix, PDF417 etc.

Q2: What is a 2D matrix scanner?

There are many kinds of 2D barcodes, such as QR, Data Matrix, PDF417, Aztec etc, those scanners can read Data Matrix, we usually call it 2D matrix scanner, actually most 2d barcode scanners can read QR, DM, PDF417.

Q3: Is 2D barcode QR Code?

QR code is one type 2D barcodes, there are more 2D barcodes like DM, Hanxin, Aztec, Dote code etc.

Q4:Can this 2D barcode reader scan 1D barcodes?

Yes, all 2d barcodes reader can read 1D barcodes like EAN13, Code128, UPC etc.

Q5: Shall we install driver to enable this barcode scanner?

No, this 2d scanner no need to install special driver to enable it, just plug and pay, very easy to use.
