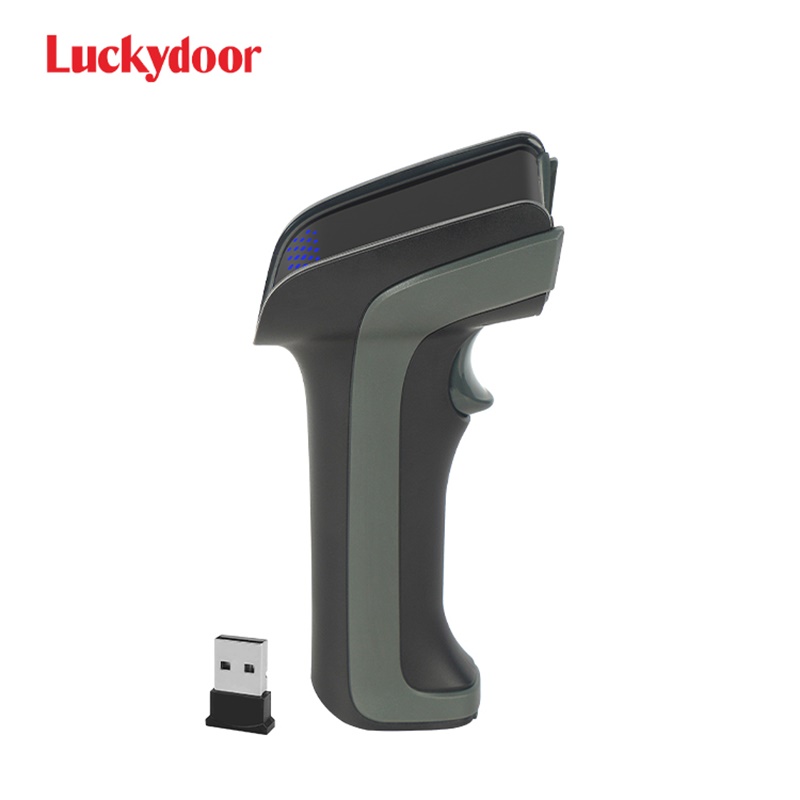

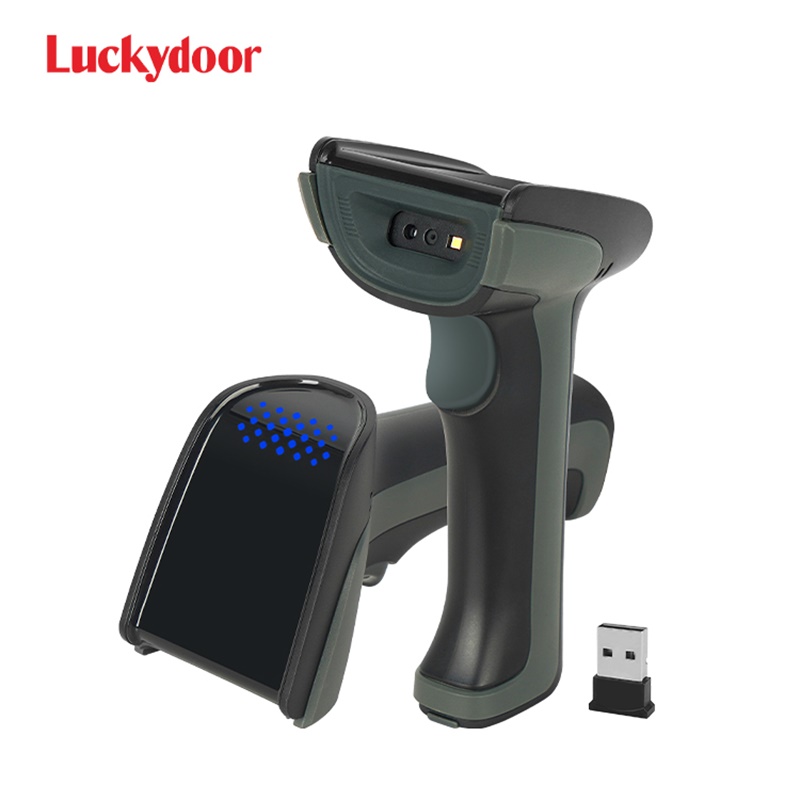

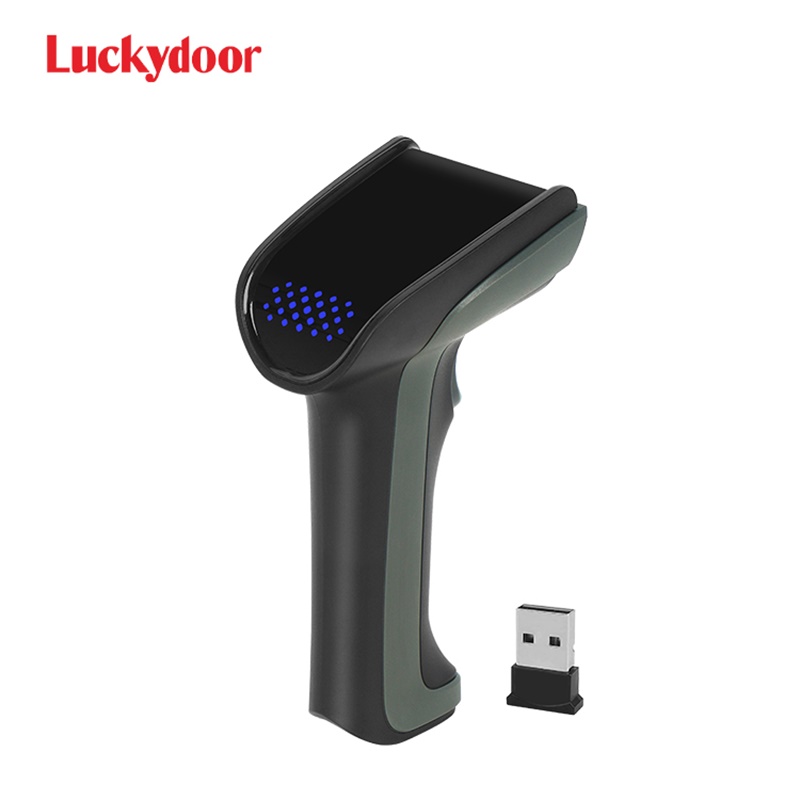

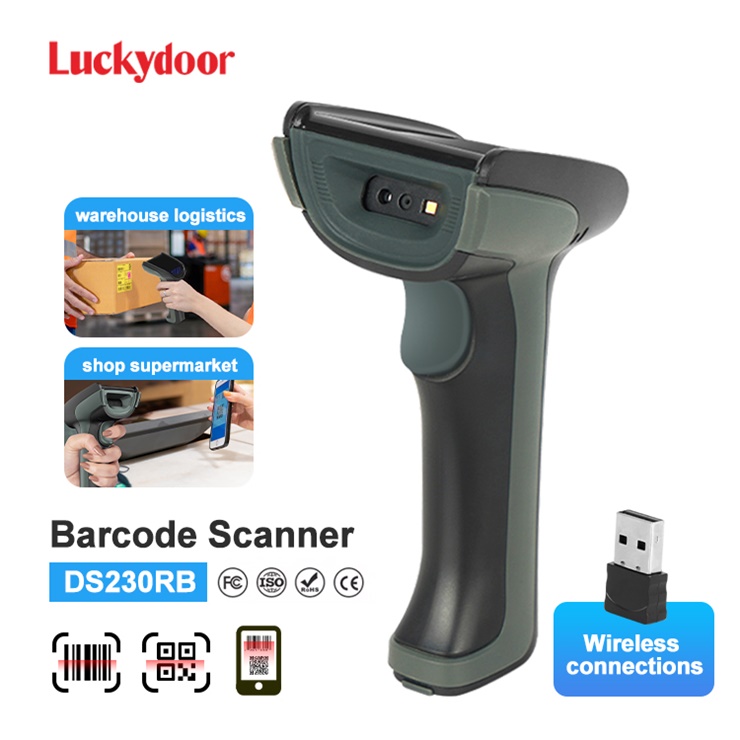

DS230RB 2D Barcode Scanner wireless 2.4G+bluetooth barcode qr code reader

DS230RB 2D Barcode Scanner wireless 2.4G+bluetooth barcode qr code reader

2D Bluetooth barcode scanner more like wired scanner, except that they can connect to smart phone, tablet directly through bluetooth, and can use in a large area, like warehouse ,this scanner with automatic store function, if the scanner out of the range , it will save the barcodes it read in the memory chip,after back to range, it will upload the data saved by press the trigger, it is very easy to use this blue tooth 2d barcode scanner, and we are one reliable barcode scanner manufacturer from China.

  • Item No :

    DS230RB
  • Order(MOQ) :

    1PCS
  • Payment :

    T/T, Western Union, MoneyGram, L/C
  • Product Origin :

    Made in China
  • Color :

    black
  • Shipping Port :

    Shenzhen port or Guangzhou port
  • Lead Time :

    1-3 working days
  • Weight :

    226.7g

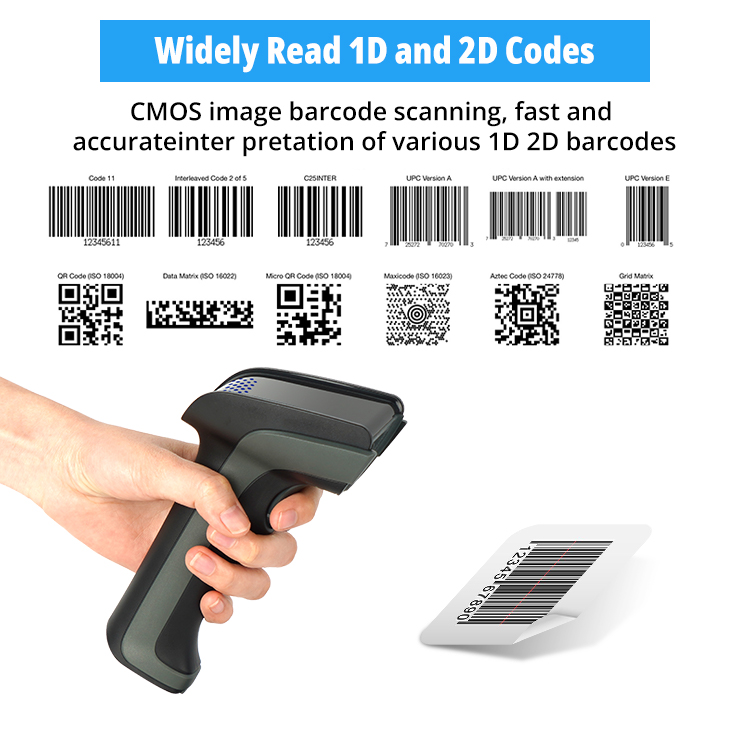

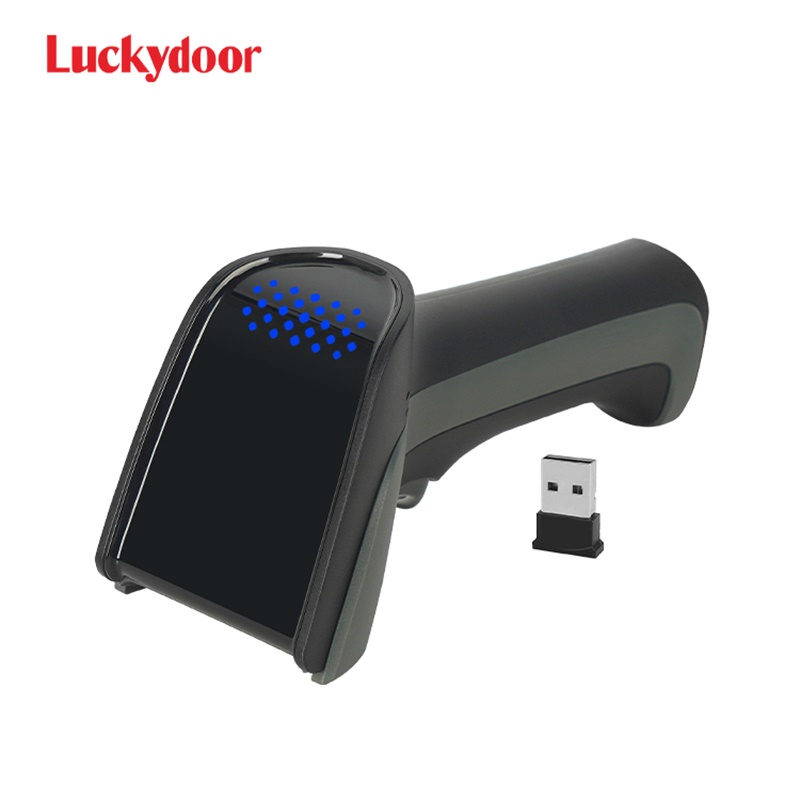

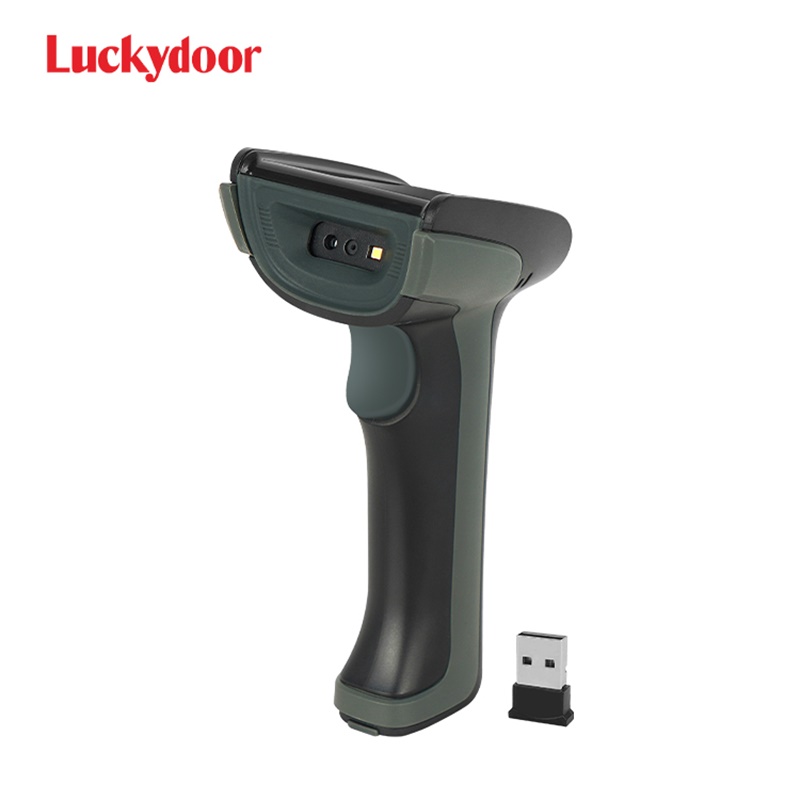

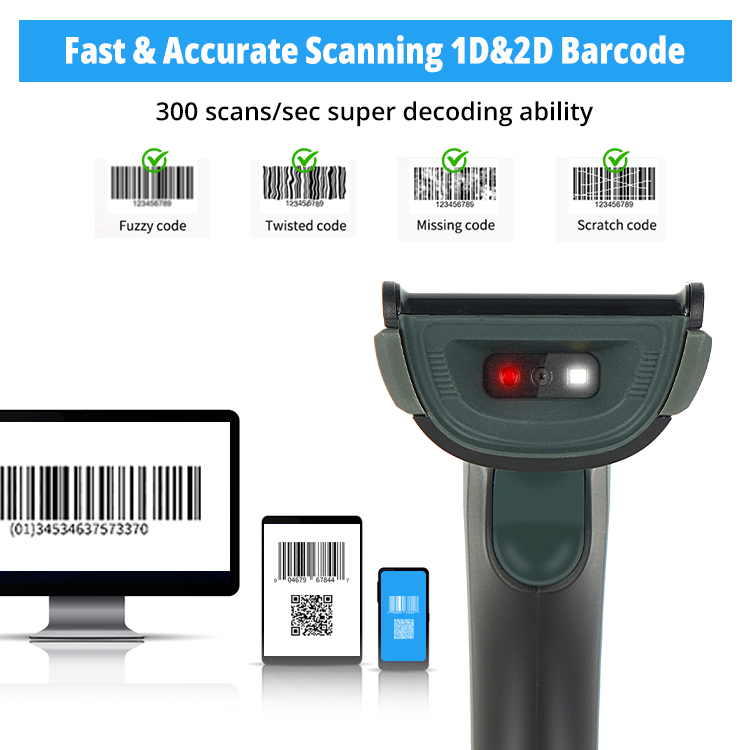

DS230RB is 2d wireless barcode scanner, Fast accurate reading speed, 32Bit CPU super decoding ability that the speed can up to 300/sec, equiped with upgraded CMOS sensor, which can easily capture 1D/ 2D(QR/ PDF417/ Data Matrix,etc) bar codes from paper and screen, that can read even deformed barcodes, i.e. smudged, damaged, fuzzy, reflective barcodes, etc. The barcode reader support cordless scanning with a 2.4G mini USB receiver, which allow you to scan bar code in every corner of your library and warehouse. Also, it can scan barcodes with a USB cable which will charge the scanner gun at the same time. Just plug the USB receiver or cable and scan, don't need driver.



Product Feature:



• New 2.4ghz wireless + Bluetooth

Scanner 2D/QR/1D

• Play and Play facilmente

Built-in 2200mAh battery

Highly sensitive decoding

Support scan barcodes on screen



Product Specifications
Performance Parameters
Light Sources
White lighting,red aiming light
Supported Symbologies
1D:Code128,Code39,Code93,EAN13,EANS, UPC E(E0,E1), ISBN13, Interleaved 2 of 5, industrial 2 of 5,Matrix 2 of5,RsS14(GS1 Databar), Rss Limited(GS1 Daabar limited,RSS Expanded(GS1 DatabarExpanded),RSS14 Stack(GS1 Databar Stack), RSSExpanded(GS1Databar Expanded Stack), codebarMSl Plessey, Code 11, $tandard 2 of 5, PlesseyChinaPost 2 of S, Code 16K, Code49.
2D: QRCode(Mode1,Mode2), icroQR, Data Matrix,PDF417,MicroPDF417.Aztec,HanXin,Maxicode,Grid Matrix Code.
Resolution
1280*1024
Scan Method
Manual/Contnuous/Automatic inductive scanning
Scan Angle
Yaw 55°,Rotation 360°,Pitch 55°
Precision
≥5mil
Contrast
20%
Depth of scan field
EAN13:4~350mm(13mil)
Error Rate
Less than 1/5million
Interface
USB-HID USB-COM
Wireless Communication
Pairing dedicated receiver: 2.4G communication
Pairing Mobile Blue tooth Devices: Blue tooth BLE 4.0
Transmission Distance
100Metres (Open yard)
Storage Mode
Offline Storage Mode: When the scanner exits the connection range,
the data is automatically stored. Storage capacity is 512000 characters.
Inventory storage mode: Scanner can enter inventory mode,
storage capacity is 512000 characters.
Pairing Mode
One to One: One Scanning Gun Pairs One Receiver,
One scanner paired with a Blue tooth mobile device.
Physical Parameters
Dimensions
164.5mm*83.6mm*69mm
Weight
226.7g
Material
ABS+PC
Cable Length
0.8M
Environmental Parameters
Operating Temperature
-20℃ ~50℃
Storage Temperature
-40℃~70℃
Relative Humidity
5%~95% RH(Non-condensing)
Ambient lighting
0~100000LUX
Drop/Shock Resistance
Withstands multiple times 3 meters drops to concrete
lectrical Parameters
Voltage
DC5V±5%
Operating Current
when not scanning code ≥26mA; when scanning code ≥280mA
Standby Current
0mA(Standby is to cut off battery power)

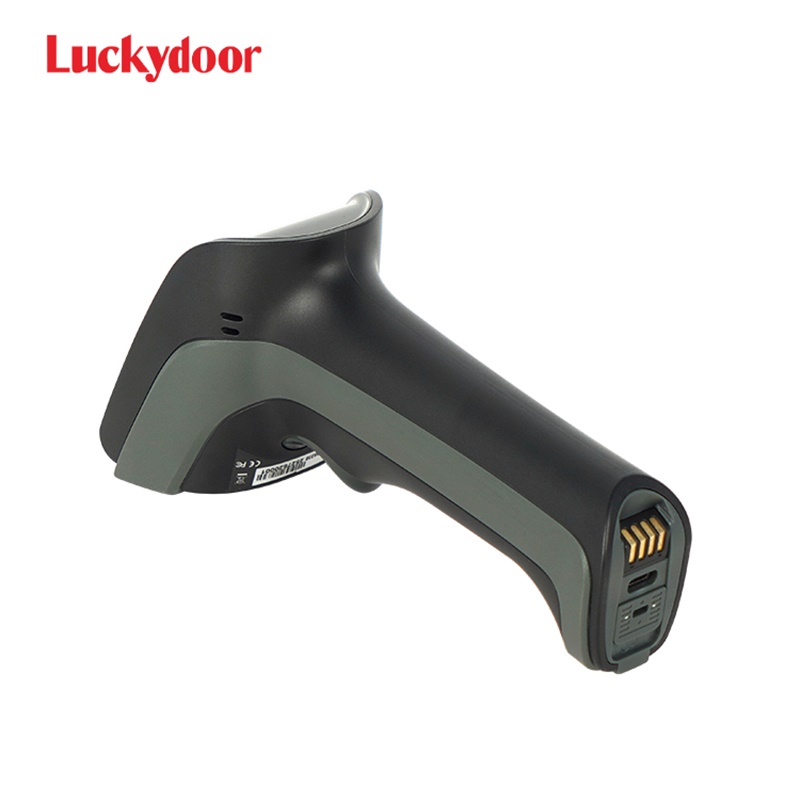

Charging Mode
Contact the charging
Battery Working Time
7h
Charging Time
5h

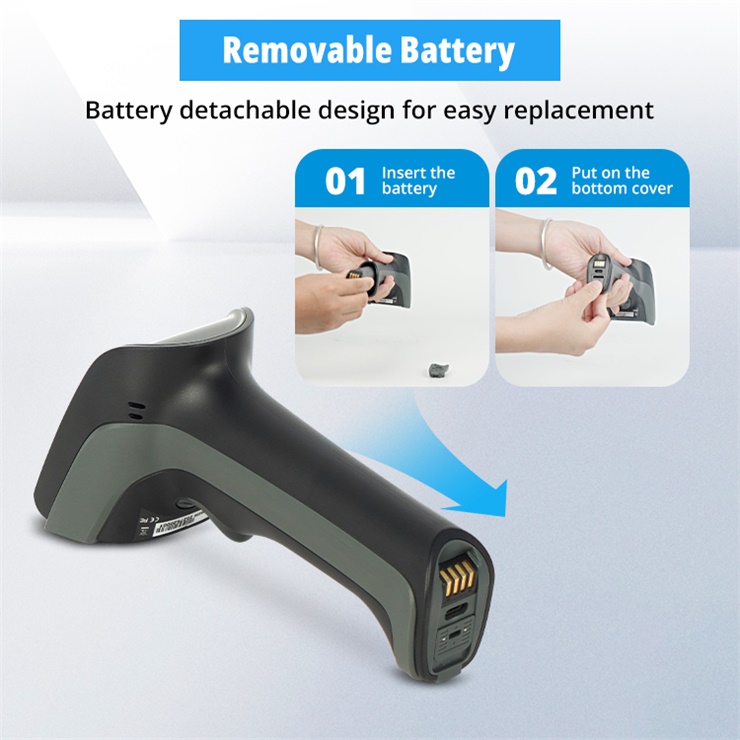

Lithium battery
2200mA
Charging Model
Type C charging cable





FAQ of DS230RB wireless 2d bluetooth qr code barcode scanner reader:



Q1: What is a Bluetooth barcode scanner?

Bluetooth barcode scanners can pair directly with mobile devices like smart phones, tablets, and connect devices through usb dongle or base which without blue tooth function.

Q2: How long can I use this bluetooth 2d scanner to work?

The 2200mAh battery can support over 8 hours continuous operating.

Q3: If out of area, will the data lose when I can new barcodes?

No, even out of the range, the data will be saved in the scanner automatically, just need the press the button to upload the stored data when you back in the range.

Q4.  Do barcode scanners work in dark?

Luckydoor Barcode scanners that use infrared rays do not need good lighting because it uses its own infrared source to flood the item being scanned with enough light so the code can be read by the imager. It does not matter if the room is dark or well-lit. The barcode scanner will work either way.



Q5. What is the purpose of barcode?

Barcodes are applied to products as a means of quick identification. They are used in retail stores as part of the purchase process, in warehouses to track inventory, and on invoices to assist in accounting, among many other uses.

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

K-626RB 2D Barcode Scanner Android wireless bluetooth barcode qr code reader
K-626RB 2D Barcode Scanner Android wireless bluetooth barcode qr code reader

2D Bluetooth barcode scanner more like wired scanner, except that they can connect to smart phone, tablet directly through bluetooth, and can use in a large area, like warehouse ,this scanner with automatic store function, if the scanner out of the range , it will save the barcodes it read in the memory chip,after back to range, it will upload the data saved by press the trigger, it is very easy to use this blue tooth 2d barcode scanner, and we are one reliable barcode scanner manufacturer from China.

Details
l500RB 2D handheld wireless bluetooth and 2.4G QR code scanner barcode scanner
l500RB 2D handheld wireless bluetooth and 2.4G QR code scanner barcode scanner

2D Bluetooth barcode scanner more like wired scanner, except that they can connect to smart phone, tablet directly through bluetooth, and can use in a large area, like warehouse ,this scanner with automatic store function, if the scanner out of the range , it will save the barcodes it read in the memory chip,after back to range, it will upload the data saved by press the trigger, it is very easy to use this blue tooth 2d barcode scanner, and we are one reliable barcode scanner manufacturer from China.

Details

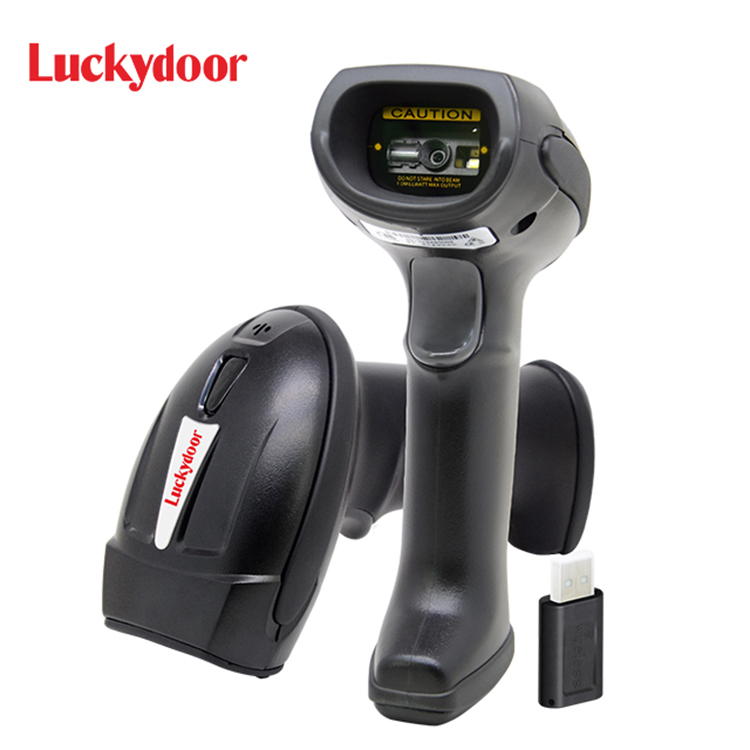

Luckydoor  1D 2D QR Code Bluetooth Barcode Scanner Wireless Bar Code Scanner
