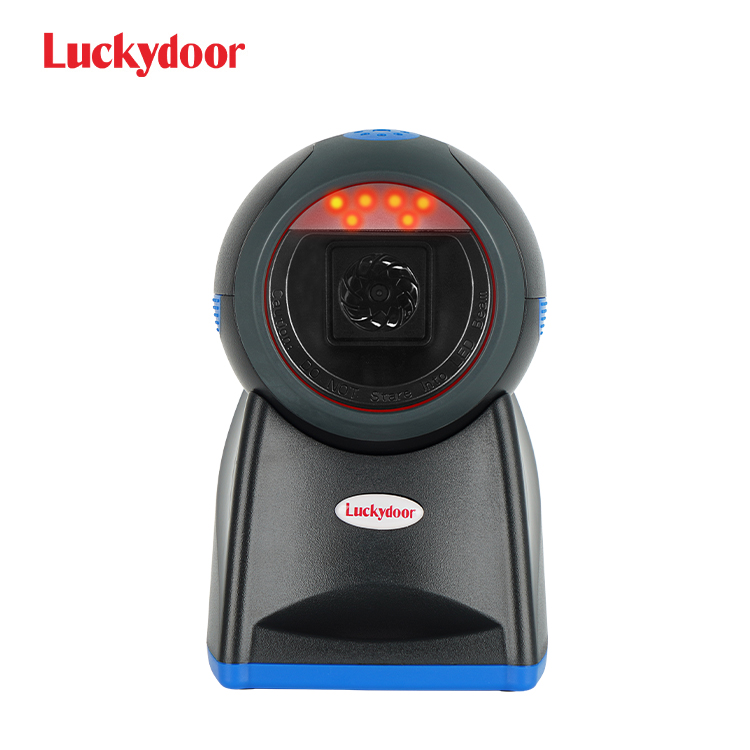

High Speed 2d desktop omnidirectional barcode scanner QR Bar code Reader scanner

High Speed 2d desktop omnidirectional barcode scanner QR Bar code Reader scanner

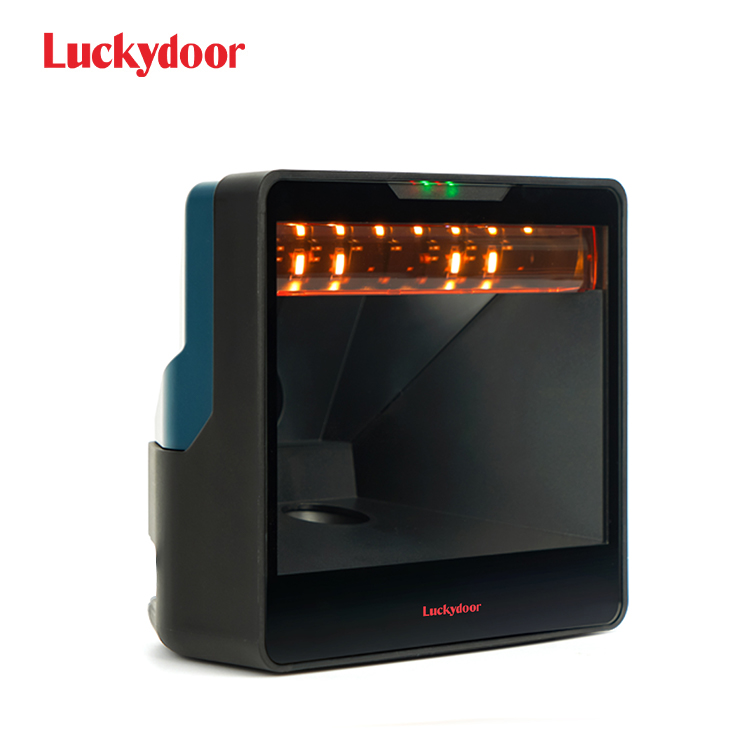

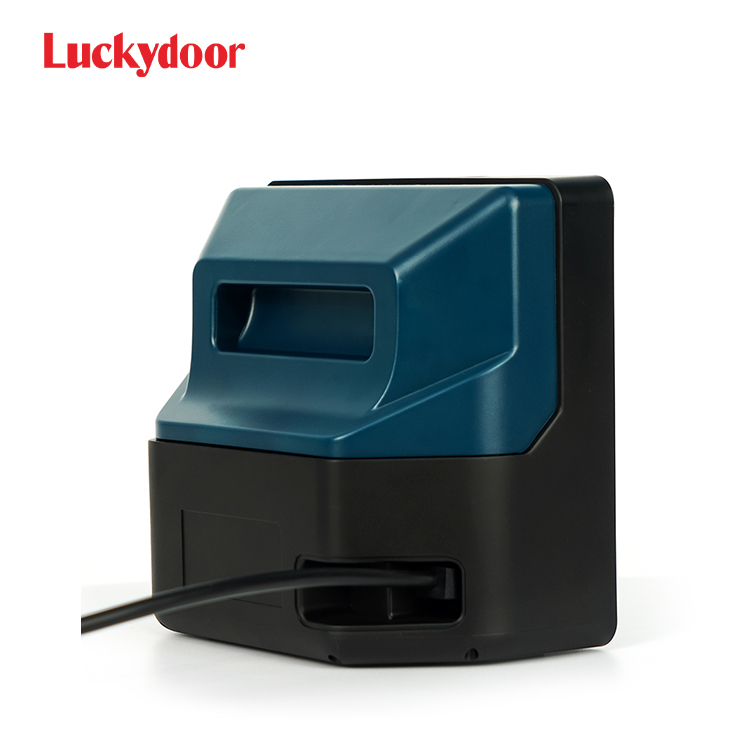

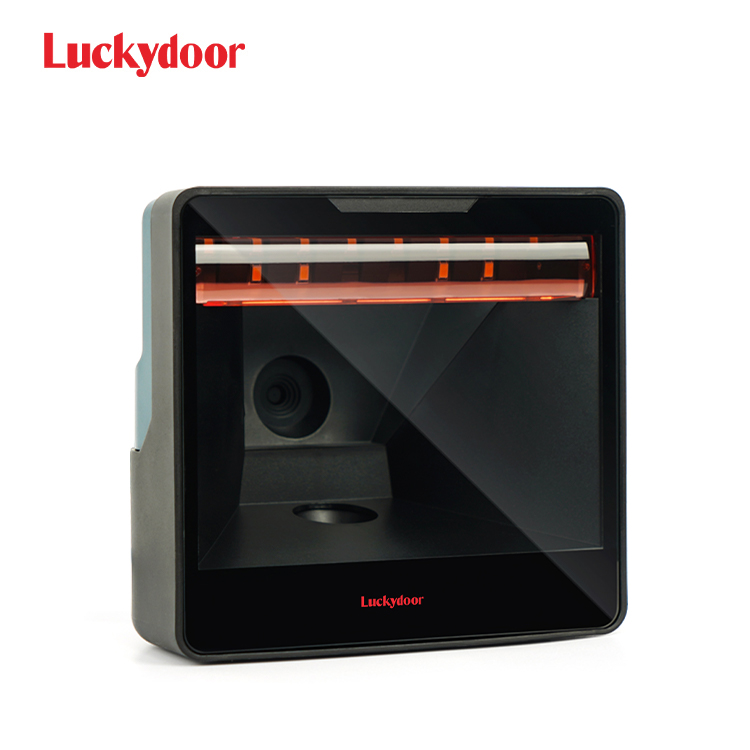

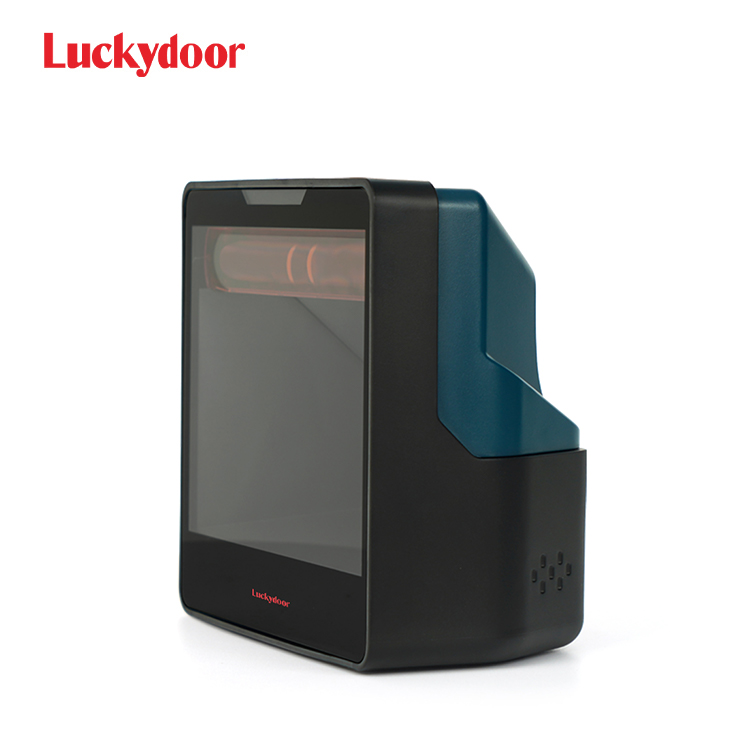

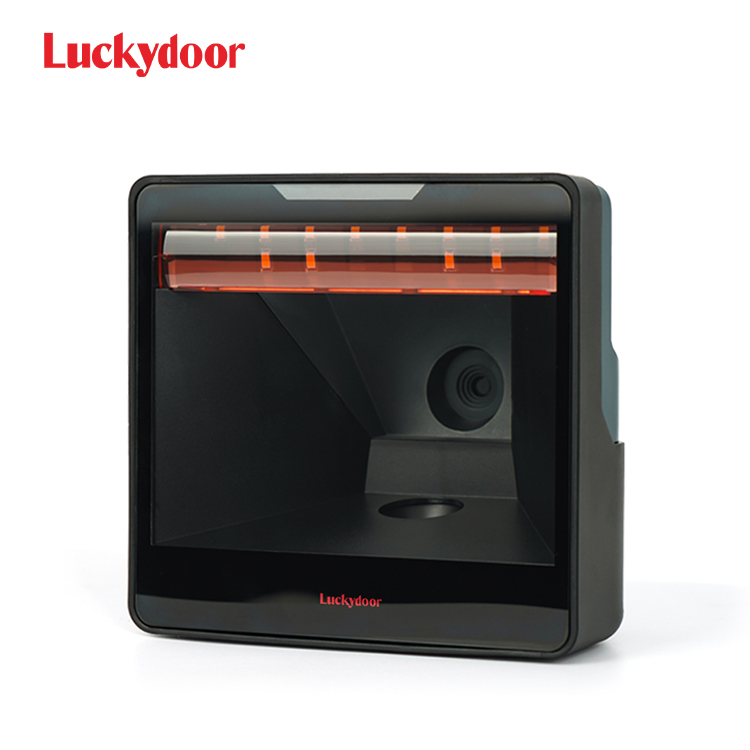

L800 is a 1.0 mega pixel high performance 2D desktop scanner with advanced CMOS image recognition technology. It can easily read paper, goods, screens and other media 1D 2D barcodes. Widely used in large supermarkets, restaurant, chain stores, and grocery stores. Adjustable tone, no noise. In real large Windows, the sweep performance is consistent regardless of the corner. Megapixel camera supports 4mil high precision bar code; coated code, fold code, damage code. Equipped with a dedicated adapter, more stable power supply. 2M/S movement tolerance, goods after no pause, reduce the waiting time in line.

  • Item No :

    L800
  • Order(MOQ) :

    1pc
  • Payment :

    T/T, Western Union, MoneyGram
  • Product Origin :

    Made in China
  • Color :

    black and blue
  • Shipping Port :

    Guangzhou or Shenzhen port
  • Lead Time :

    3-7 days
  • Weight :

    540g

L800 is a high performance 1D 2D desktop QR barcode scanner with advanced CMOS image recognition technology. The mainstream 1D/2D/Screen code on the market can be quickly identified. With real large Windows, the sweep performance is consistent regardless of the corner. Megapixel camera supports 4mil high precision bar code; coated code, fold code, damage code, Reflective code, Wrinkle code, Colorful code, Long code, Dirty code, Tear code. Equipped with a dedicated adapter, more stable power supply. 4M/S movement tolerance, goods after no pause, reduce the waiting time in line.



Product Feature:

2D large viewing angleimaging platform.

The wide scanning angle makes scanning no longer limited.

Omnidirectional hands-free scanning, easy decoding, no need to hold hands, free hands.

 Rich decognition rate, high recognition rate.

Product Specifications
Parameter Information
Light Source
LED
Supported Symbologies
1D: Codabar, Code 11, Code 39, Code 93, Code128/EAN128, EAN,UCC Composite, Interleaved 2 of 5, MSI Code, Planet, Plessey Code, Postnet, RSS,Standard 2 of 5, Telepen, UPC /EAN,etc.
2D: PDF417, QR Code, Matrix 2 of 5, Mrico PDF417, Austraaalian Post, Canada Post, Japan Code, Maxi Code, Codeblock, Aztec, Dutch Post, TLC 39, Data Matrix, etc.
System Compatibility
Linux, Android, Windows XP/7/8/10
Scan Range
Code 39(5 mil)0 mm~120mm, Code39(20mil)0mm~240mm, QR(20mil)0mm~210mm, Alipay Code(QR 3*3cm)40mm~650mm, Wechat Code(QR 2.3*23cm) 20mm~550mm
Print Contrast
20% minimum reflective difference
Minimum recognition accuracy
Code 39 4mil
Motion Tolerance
4 meters/second
Scan Mode
Automatic Induction Scanning
Image(Pixels)
1024 pixels(H)x1280 pixels(V)
Man-machine Interaction
Indicator light: Red and blue dual color indicator light, blue light flashing code reading prompt, blue light power indicator, red light, turn off qr code reading, Buzzer:start prompt, read code prompt; Key:switch three tones;1D code switch
Recognition angle range
Turn+-360º, Elevation+-65º, Declination +-65º
Interface
USB(Drive-Free), RS232, USB-COM
Physical Parameters
Dimensions
140*140*85mm(length*width*height)
Weight
540g
Material
ABS+PC
Cable Length
2m
Environmental Parameters
Operating Temperature
-20ºC~55ºC
Storage Temperature
-20ºC~60ºC
Relative Humidity
5%~95%(non-condensing/non-freezing)
Shock Resistance
Withstands multiple times 1.5 meters drops to concrete
Ambient Light Lmmunity
0-1000000Lux
Electronic Parameters
Working Voltage
DC5V+-5%
Current
Standby current 190mA, Working current 240mA




FAQ of L800 2d desktop barcode scanner:

Q1: How do you make quality control?

We have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q2: How long is the warranty time of barcode scanner?

 24 months.

Q3: How to control the performance stable?

We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q4: Can you provide OEM or ODM service for barcode scanner?



We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
