L500 2D Wired Handheld CMOS QR Code Reader Portable USB Barcode Scanner

L500 2D Wired Handheld CMOS QR Code Reader Portable USB Barcode Scanner

Luckydoor L500 is a handheld wired CMOS image barcode scanner that can read 1D / 2D QR bar codes. Accurate identification assures rapid scanningof exceptional codes. With upgraded decoding engine and 640*480 CMOS image sensor, reading barcode is much more easier and faster. Plug and play, no need to install any software or drivers, simple operation. Equipped with high-performance CMOS imagingchip as well as white soft light and red light to filllight and focus, the scanner can easily aim andidentify the code shown on the screen or printedon the paper even in poorly-lit environment.  Adapts to various environment. Captures1D/2D barcodes on screen and papereven in poorly-lit environment.

  • Item No :

    L500
  • Order(MOQ) :

    1pc
  • Payment :

    T/T, Western Union, MoneyGram, L/C
  • Product Origin :

    Made in China
  • Color :

    black and blue
  • Shipping Port :

    Guangzhou port or Shenzhen port
  • Lead Time :

    1-3 working days
  • Weight :

    100g

This L500 barcode scanner is very cost-effective and suitable for those who have a small budget but want to improve the working efficiency. The Luckydoor 2d barcode scanner makes your job easy if you own a small business. The powerful bar code decoding capabilities and durable appearance make it can be widely used in supermarkets, convenience stores, warehouse, library, bookstore, drugstore, retail shop for file management, inventory tracking and POS.



Product Feature:

• Universal plug and play

• Impact resistant housing

• Multiple changing color LED on sides and top

• Built in high performance 2D engine & decoder

• Powerful Decoding Capability



Product Specifications
Performance Parameters
Light Sources
617nm LED Aimer, White LED

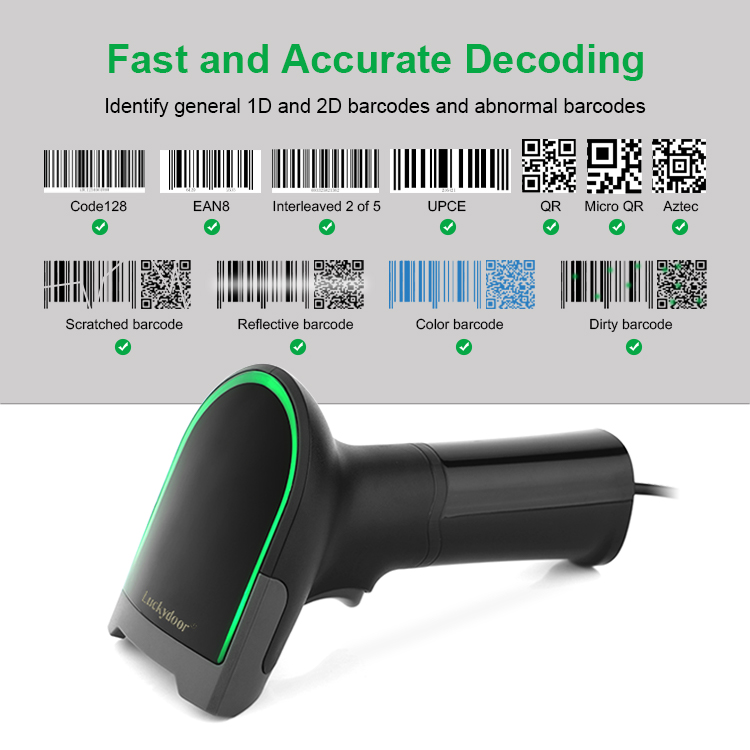

Supported Symbologies
1D: CODE128,EAN-13, ISBN,ISNN, EAN-8, UPC-A, UPC-E, Code 39,
Code 39 Full ASCII, Codabar, Code 93, Interleaved 2 of 5,
Industrial 2 of 5, IATA 2 of 5, Matrix 2 of 5, Code 11, MSI Plessey,
GS1 128, code32
2D: QR Code, Data Matrix, PDF417, Micro PDF417, Aztec Code,
Micro QR, Direct Chinese
Scan Type
Image CMOS
Resolution
640*480
Scan Method
Manual/Continuous/Automatic scanning
Scan angle
Yaw 60°,Rotation 360°,Pitch 60°
Precision
≥4mil
Depth of scan field
30mm-230mm (EAN13 13mil 90%PCS)
Error Rate
Less than 1/5million
Interface
USB-HID, USB-COM, RS232
Physical Parameters
Dimensions
70.5mm*86.2mm*165.2mm
Weight
100g
Material
ABS+PC
Cable Length
2m
Environmental Parameters
Operating Temperature
-20℃ ~ 50℃
Storage Temperature
-40℃ ~ 70℃
Relative Humidity
5%~95% RH(Non-condensing)
Ambient lighting
0~100000LUX
Drop/Shock Resistance
Withstands multiple times 1.5 meters drops to concrete
Electrical Parameters
Working Voltage
DC5V±5%
Operating Current
120mA



FAQ of L500 new model handheld wired barcode scanner:

Q1: Do your devices support other language except English?

Yes, our device support English, Spanish, Arabic, etc.

Q2: an you accept customized logo?

 our device support English, Spanish, Arabic, etc

Q3: Will my scanner work with my tablet or laptop?

If you wish to scan to a tablet or laptop then you can use a data collection device called a companion scanner. The companion scanner pairs with the receiving device through a Bluetooth connection to pass scanning data to it. The scanners have no screens and are required to stay in close proximity to the receiving device, 50mtr for Bluetooth. Some paired scanners have the ability to work offline and batch upload to the paired device, but you do need to check. Ensure that you are running an inventory system or data capture programme on your receiving device, as the companion scanner like the wireless barcode scanner it is simply an input device.
