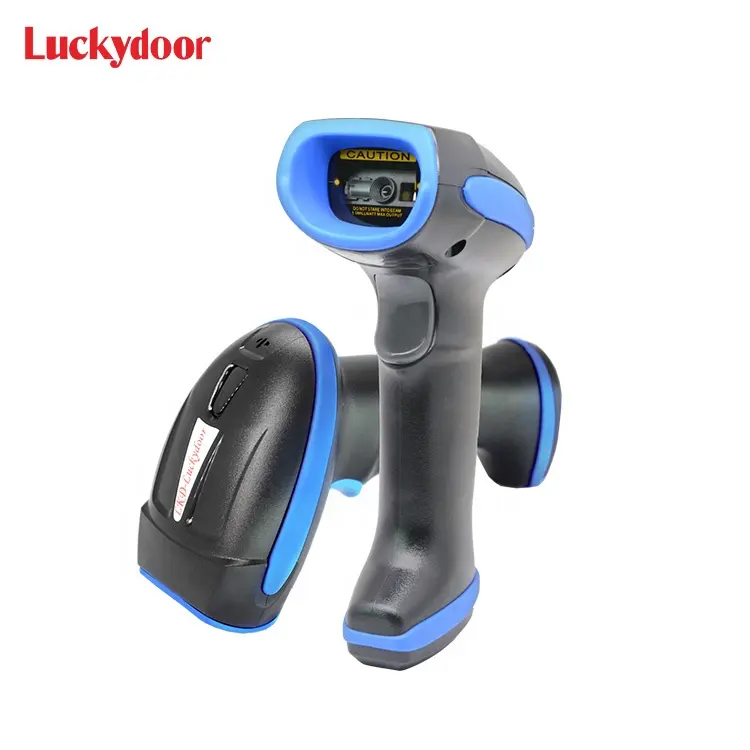

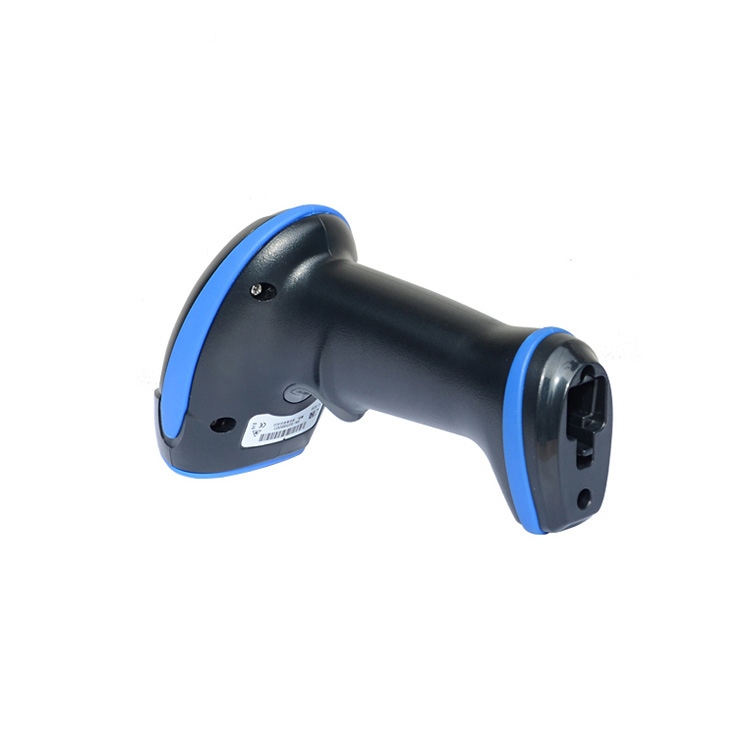

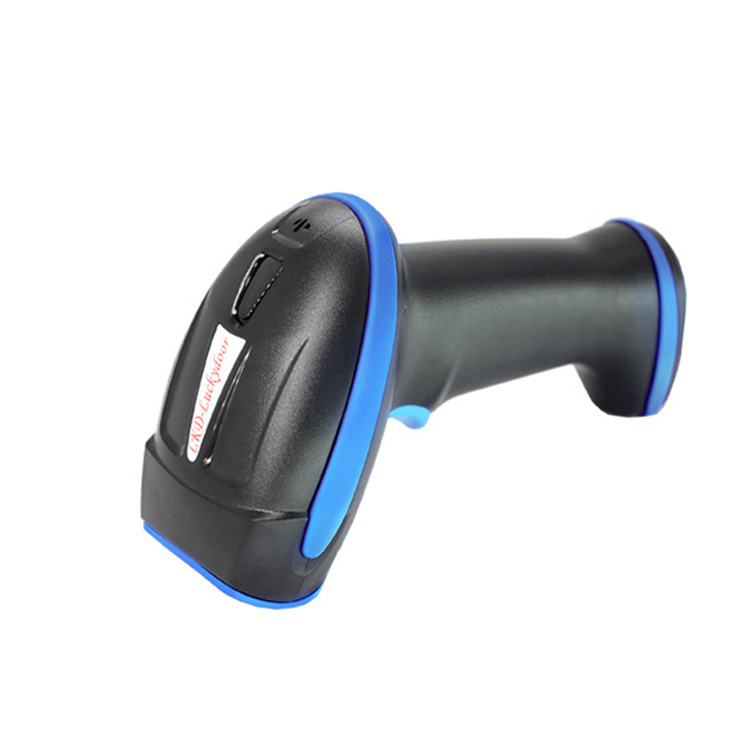

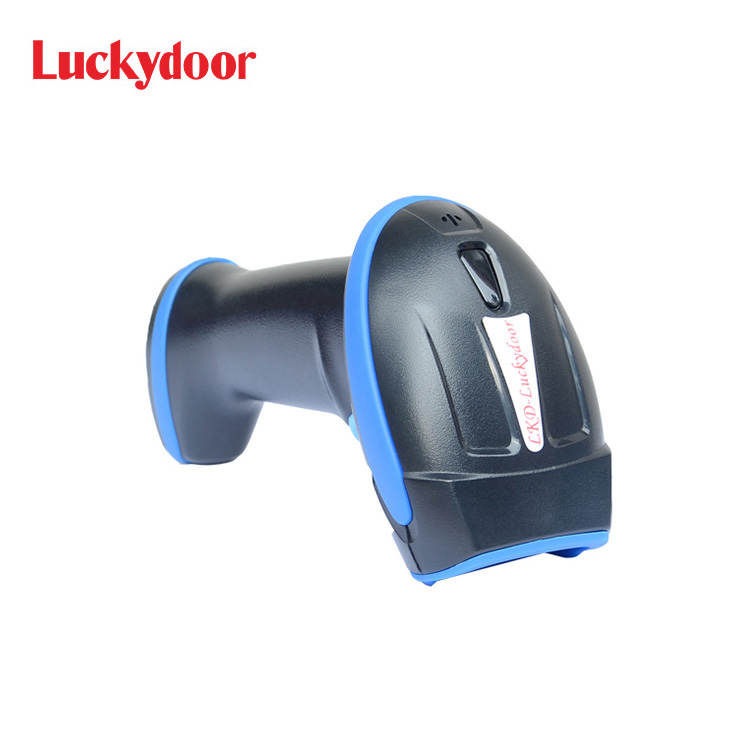

Luckdyoor K-626 QR 2D Barcode Scanner Handheld USB 1D 2D Barcode Reader

Luckdyoor K-626 QR 2D Barcode Scanner Handheld USB 1D 2D Barcode Reader

K-626 is a 2D scanner with excellent performance. Universal handheld image 2D barcode scanner, using internationaadvanced image transmission technology, with two-way communicationinstant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. It has excellent ability to read bar codes on mobile phone screen. Our devices can be used as register scanners and can be corded, cordless, 1D, 2D, or connected to a iOS/Android smart phone / tablet.



  • Item No :

    K-626
  • Order(MOQ) :

    1pc
  • Payment :

    T/T, Western Union, MoneyGram, L/C
  • Product Origin :

    Made in China
  • Color :

    black and blue
  • Shipping Port :

    shenzhen port or guangzhou port
  • Lead Time :

    1-3 working days
  • Weight :

    354g

K-626 maging barcode scanner is our newly developed and hot selling product, it is aim to point of sales system, which can read merchandise barcodes like EAN13 fast and accurate. The USB interface allow end users integrate to their POS system quickly and easily, no need install driver or other special software, it is simple for new users to operate.



Product Feature:

 • With USB cable for connection, plug and play, no need to install any software or drivers, simple operation. It is a 2d usb barcode scanner for point of sale system.

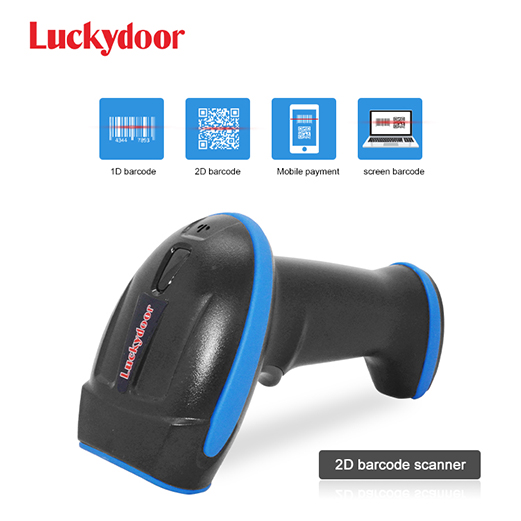

• Multi-functional scanner, great for scanning most of 1D barcode and 2D barcode on paper and screen.

•Support to put prefix or suffix before or after scanned data.

• Support connection with computer, laptop. Compatible Operating System for Linux, Android, Windows

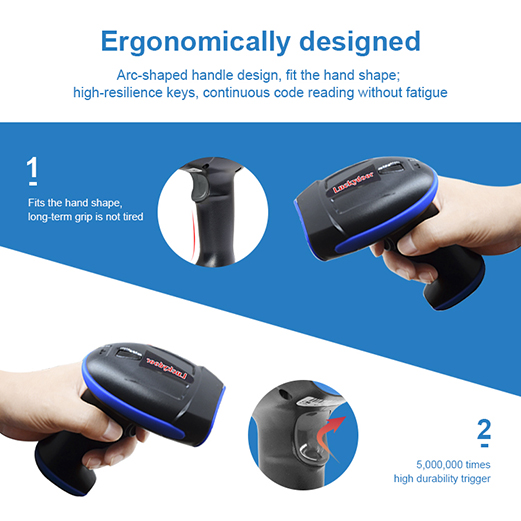

• Made of great ABS+PC materials,high shock-resistant (Drop Test: 2m fall to concrete) and durable plastic material guarantees long service life.

• Having fast scanning speed, high sensitivity, stable performance and high recognition rate, widely used in supermarket, convenience store, library, drugstore, retail shop, catering services and other industrials.





Product Specifications
Working Parameters
Light Source
617nm LED Aimer,White LED
Scan Distance
5-390mm
Scan Angle
Yaw 65°,Rotation 60°,Pitch 360°
Scan Speed
>25inch/63cm each second
Min.Resolution
SR;Code39 4.8mil,UPC60% 5mil,PDF417 5mil,Datamatrix7.5mil
Print Contrast Signal
>30%(UPC/EAN 100%)
LED Indication
white
Sound
adjustable buzzer
Communication Interface
HID USB,USB Virtual COM,RS-232 ,PS2
Physical Parameters
Dimension
176mmx100mmx72mm
Weight
354g (data line not included)
Wire Length
2.0m
Power Supply Parameters
Input Voltage
5VDC±1%
Working Current
85mA( operating)
Environment Parameters
Operating Temperature
-20°C~+50°C
Operating Humidity
5%~95% no condensation
Storage Temperature
-40°C~+70°C
Ambient Brightness
3000~8,000Lux(fluorescence),3000-8000Lux(sunlight)
Safety Standards
EMC
CE EN55022 B, FCC Part 15 Class B, IP54 Waterproof Test,
Laser Safety
IEC 60825-1 Class 1

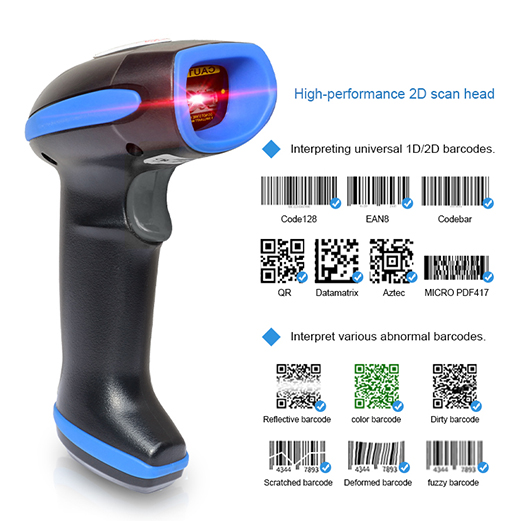

Decode Type
1D Barcodes
UPC/EAN/JAN ,UPC/EAN with Supplementals,UCC/EAN 128,
CODE 39,MSI,CODE 11,CODE 39 FULL ASCII,CODE 39 TriOptic
code 128,code 128Full ASCII,Codebar ,code 93,Discrete20f5,
IATA,RSSvariants,Codabar,Chinese2of5,Inteleaved2/5
interleaved2of5,china post code and all international 1D code
2D Barcodes
PDF417, Data Matrix, QR Code, Aetec, Hanxin.








FAQ of K-626 handheld wired barcode scanner:

Q1: What are the differences between 1D and 2D barcodes?

The biggest differences between 1D and 2D barcodes is 1d barcodes only one dimension like EAN8 ,and2D barcodes has two dimensions like QR.

Q2: Can this Usb automatic barcode scanner read barcodes from tablet?

Yes, it is 2d barcode scanner with cmos technology can read from tablet or other mobile devices screen.

Q3: Is it working with my windows pos systems?

Yes, this usb barcode scanner can easy integrate with your pos sytems ,plug and play.


leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

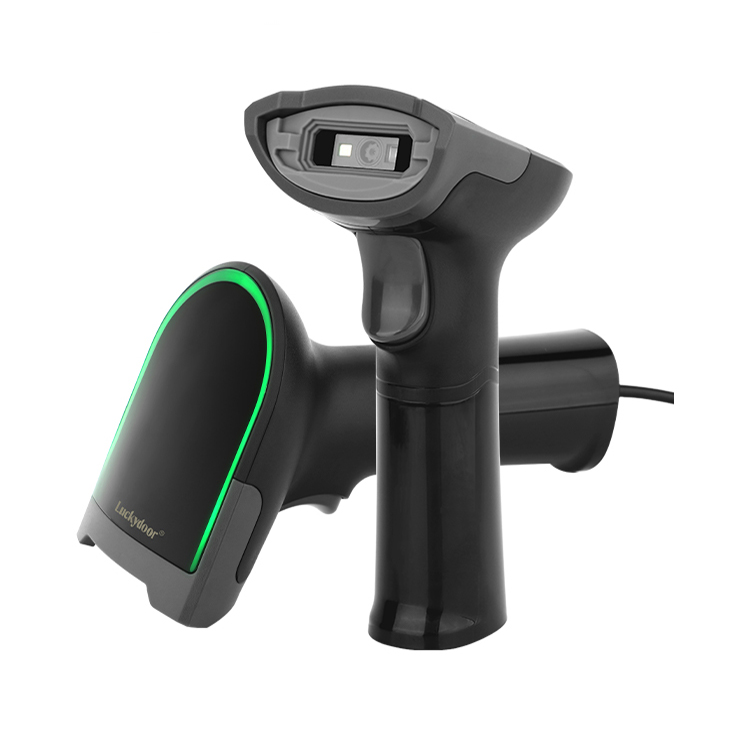

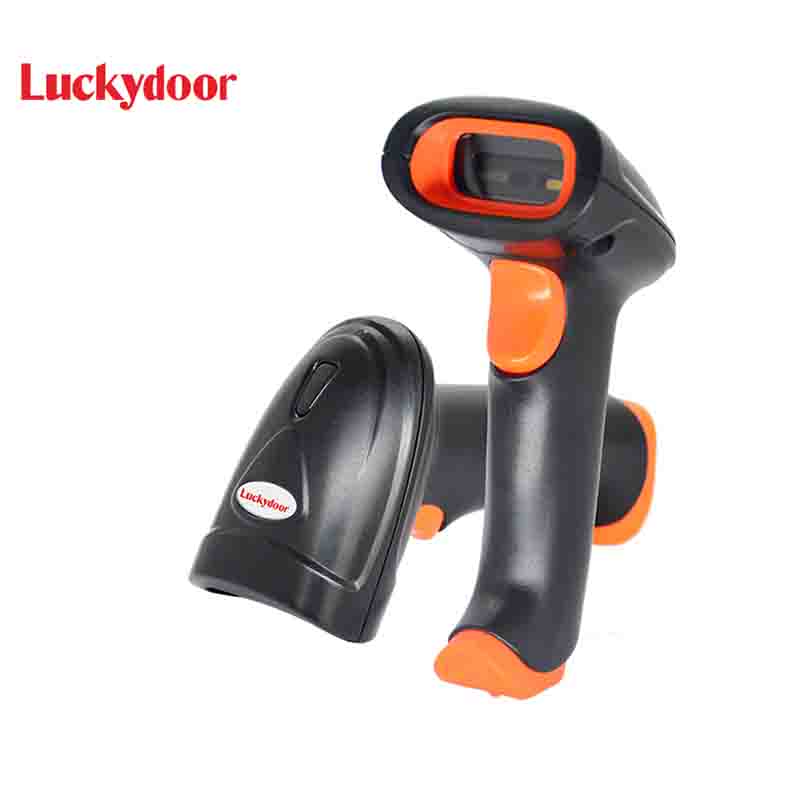

2D USB Handheld QR Code Reader Android Barcode Scanner Gun
2D USB Handheld QR Code Reader Android Barcode Scanner Gun

K-620 imager barcode scanner is good performance on reading 1D and 2D barcodes. With Excellent Error-Correcting Performance, it can scan the Decodes for Damaged lncomplete Barcode, fuzzy barcode, Twsited Wrinkledbarcode, Reflective barcode, Colorful and Long Barcode etc. It is easy to deal with mold and code, incomplete deformation, damaged pollution, screen code, large format and other difficult bar code. It is the best assistant in retail stores, supermarket, library, hospital, pharmacy, express, warehouse and other industries.

Details
Luckdyoor K-626 QR 2D Barcode Scanner Handheld USB 1D 2D Barcode Reader
Luckdyoor K-626 QR 2D Barcode Scanner Handheld USB 1D 2D Barcode Reader

K-626 is a 2D scanner with excellent performance. Universal handheld image 2D barcode scanner, using internationaadvanced image transmission technology, with two-way communicationinstant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. It has excellent ability to read bar codes on mobile phone screen. Our devices can be used as register scanners and can be corded, cordless, 1D, 2D, or connected to a iOS/Android smart phone / tablet.

Details

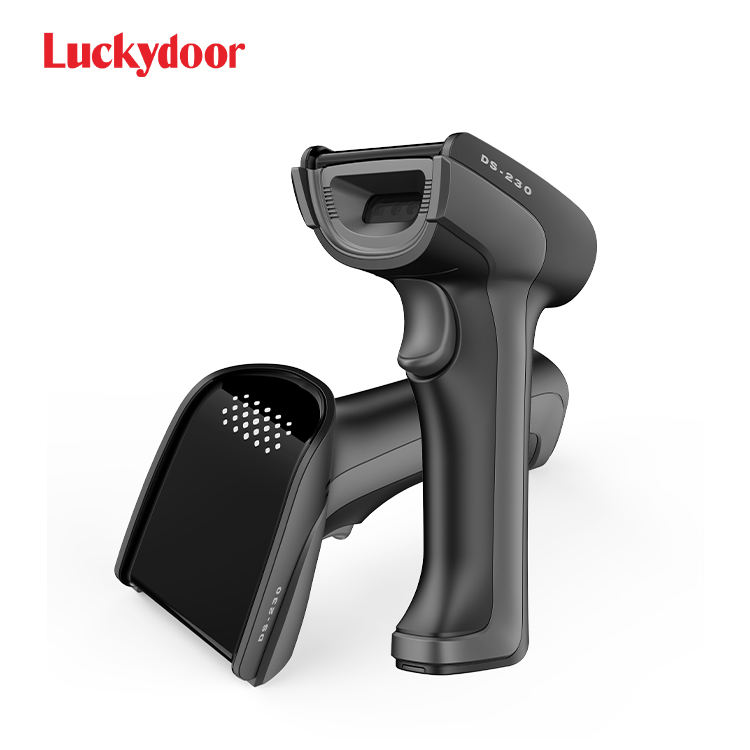

1280*1024 CMOS DS230 2d qr code scanner barcode reader gun for supermaket
1280*1024 CMOS DS230 2d qr code scanner barcode reader gun for supermaket

DS230 this 1d and 2d barcode scanner adopt advanced image technology and deliver excellent decoding performance on 1D and 2D barcodes, keep your checkout lines moving fast and improve the customers shopping experience, it can read both barcodes printed on label and moible phone screen.

Details

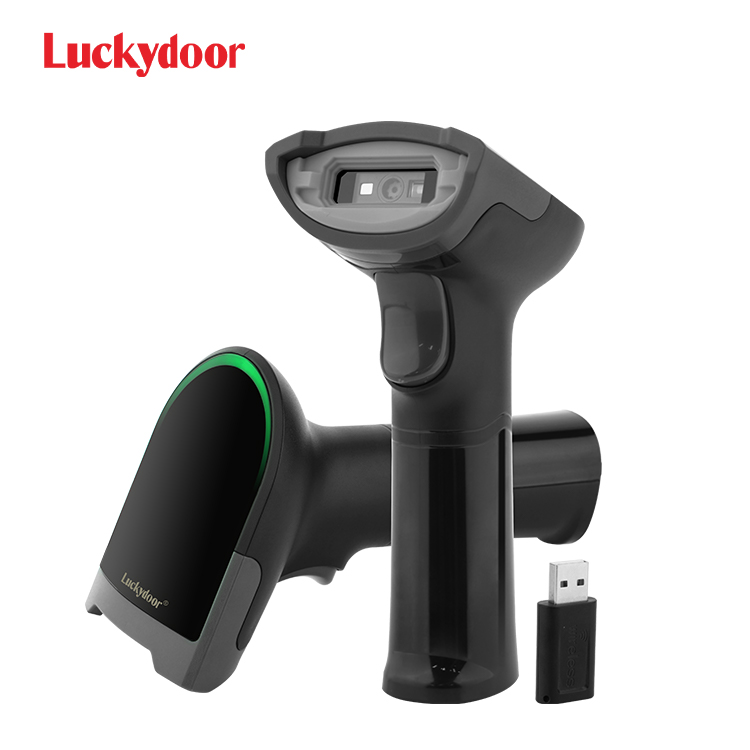

L500 2D Wired Handheld CMOS QR Code Reader Portable USB Barcode Scanner
